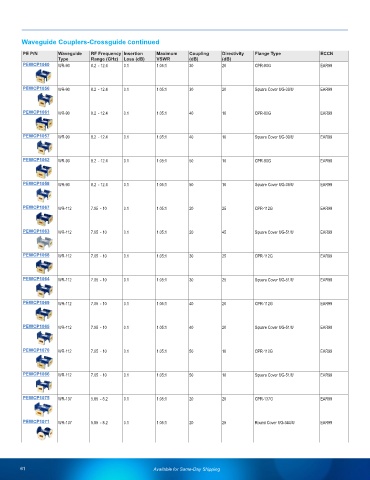

Page 62 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCP1060 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 CPR-90G EAR99

PEWCP1056 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 Square Cover UG-39/U EAR99

PEWCP1061 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 CPR-90G EAR99

PEWCP1057 WR-90 8.2 - 12.4 0.1 1.05:1 40 10 Square Cover UG-39/U EAR99

PEWCP1062 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 CPR-90G EAR99

PEWCP1058 WR-90 8.2 - 12.4 0.1 1.05:1 50 10 Square Cover UG-39/U EAR99

PEWCP1067 WR-112 7.05 - 10 0.1 1.05:1 20 25 CPR-112G EAR99

PEWCP1063 WR-112 7.05 - 10 0.1 1.05:1 20 45 Square Cover UG-51/U EAR99

PEWCP1068 WR-112 7.05 - 10 0.1 1.05:1 30 25 CPR-112G EAR99

PEWCP1064 WR-112 7.05 - 10 0.1 1.05:1 30 25 Square Cover UG-51/U EAR99

PEWCP1069 WR-112 7.05 - 10 0.1 1.05:1 40 20 CPR-112G EAR99

PEWCP1065 WR-112 7.05 - 10 0.1 1.05:1 40 20 Square Cover UG-51/U EAR99

PEWCP1070 WR-112 7.05 - 10 0.1 1.05:1 50 10 CPR-112G EAR99

PEWCP1066 WR-112 7.05 - 10 0.1 1.05:1 50 10 Square Cover UG-51/U EAR99

PEWCP1075 WR-137 5.85 - 8.2 0.1 1.05:1 20 20 CPR-137G EAR99

PEWCP1071 WR-137 5.85 - 8.2 0.1 1.05:1 20 25 Round Cover UG-344/U EAR99

61 Available for Same-Day Shipping
