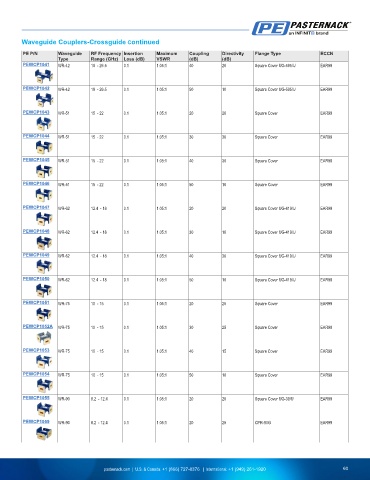

Waveguide Couplers-Crossguide Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCP1041 WR-42 18 - 26.5 0.1 1.05:1 40 20 Square Cover UG-595/U EAR99
PEWCP1042 WR-42 18 - 26.5 0.1 1.05:1 50 10 Square Cover UG-595/U EAR99
PEWCP1043 WR-51 15 - 22 0.1 1.05:1 20 20 Square Cover EAR99
PEWCP1044 WR-51 15 - 22 0.1 1.05:1 30 30 Square Cover EAR99
PEWCP1045 WR-51 15 - 22 0.1 1.05:1 40 30 Square Cover EAR99
PEWCP1046 WR-51 15 - 22 0.1 1.05:1 50 10 Square Cover EAR99
PEWCP1047 WR-62 12.4 - 18 0.1 1.05:1 20 20 Square Cover UG-419/U EAR99
PEWCP1048 WR-62 12.4 - 18 0.1 1.05:1 30 10 Square Cover UG-419/U EAR99
PEWCP1049 WR-62 12.4 - 18 0.1 1.05:1 40 30 Square Cover UG-419/U EAR99
PEWCP1050 WR-62 12.4 - 18 0.1 1.05:1 50 10 Square Cover UG-419/U EAR99
PEWCP1051 WR-75 10 - 15 0.1 1.05:1 20 25 Square Cover EAR99
PEWCP1052A WR-75 10 - 15 0.1 1.05:1 30 25 Square Cover EAR99
PEWCP1053 WR-75 10 - 15 0.1 1.05:1 40 15 Square Cover EAR99
PEWCP1054 WR-75 10 - 15 0.1 1.05:1 50 10 Square Cover EAR99
PEWCP1055 WR-90 8.2 - 12.4 0.1 1.05:1 20 20 Square Cover UG-39/U EAR99
PEWCP1059 WR-90 8.2 - 12.4 0.1 1.05:1 20 25 CPR-90G EAR99
