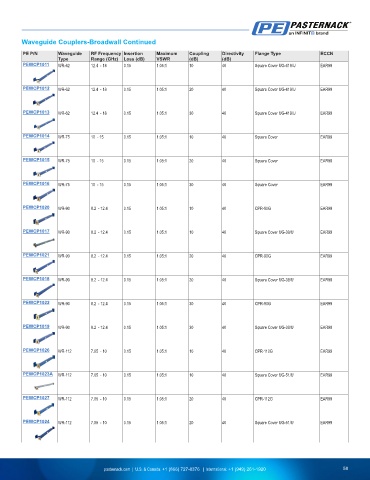

Page 59 - Waveguides Product Selection Guide

Waveguide Couplers-Broadwall Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCP1011 WR-62 12.4 - 18 0.15 1.05:1 10 40 Square Cover UG-419/U EAR99

PEWCP1012 WR-62 12.4 - 18 0.15 1.05:1 20 40 Square Cover UG-419/U EAR99

PEWCP1013 WR-62 12.4 - 18 0.15 1.05:1 30 40 Square Cover UG-419/U EAR99

PEWCP1014 WR-75 10 - 15 0.15 1.05:1 10 40 Square Cover EAR99

PEWCP1015 WR-75 10 - 15 0.15 1.05:1 20 40 Square Cover EAR99

PEWCP1016 WR-75 10 - 15 0.15 1.05:1 30 40 Square Cover EAR99

PEWCP1020 WR-90 8.2 - 12.4 0.15 1.05:1 10 40 CPR-90G EAR99

PEWCP1017 WR-90 8.2 - 12.4 0.15 1.05:1 10 40 Square Cover UG-39/U EAR99

PEWCP1021 WR-90 8.2 - 12.4 0.15 1.05:1 20 40 CPR-90G EAR99

PEWCP1018 WR-90 8.2 - 12.4 0.15 1.05:1 20 40 Square Cover UG-39/U EAR99

PEWCP1022 WR-90 8.2 - 12.4 0.15 1.05:1 30 40 CPR-90G EAR99

PEWCP1019 WR-90 8.2 - 12.4 0.15 1.05:1 30 40 Square Cover UG-39/U EAR99

PEWCP1026 WR-112 7.05 - 10 0.15 1.05:1 10 40 CPR-112G EAR99

PEWCP1023A WR-112 7.05 - 10 0.15 1.05:1 10 40 Square Cover UG-51/U EAR99

PEWCP1027 WR-112 7.05 - 10 0.15 1.05:1 20 40 CPR-112G EAR99

PEWCP1024 WR-112 7.05 - 10 0.15 1.05:1 20 40 Square Cover UG-51/U EAR99
