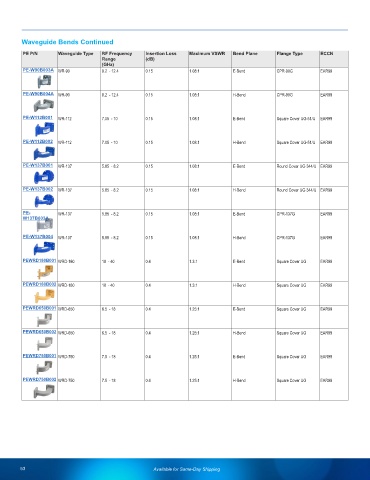

Waveguide Bends Continued
PE P/N Waveguide Type RF Frequency Insertion Loss Maximum VSWR Bend Plane Flange Type ECCN
Range (dB)
(GHz)
PE-W90B003A WR-90 8.2 - 12.4 0.15 1.08:1 E-Bend CPR-90G EAR99
PE-W90B004A WR-90 8.2 - 12.4 0.15 1.08:1 H-Bend CPR-90G EAR99
PE-W112B001 WR-112 7.05 - 10 0.15 1.08:1 E-Bend Square Cover UG-51/U EAR99
PE-W112B002 WR-112 7.05 - 10 0.15 1.08:1 H-Bend Square Cover UG-51/U EAR99
PE-W137B001 WR-137 5.85 - 8.2 0.15 1.08:1 E-Bend Round Cover UG-344/U EAR99
PE-W137B002 WR-137 5.85 - 8.2 0.15 1.08:1 H-Bend Round Cover UG-344/U EAR99
PE- WR-137 5.85 - 8.2 0.15 1.08:1 E-Bend CPR-137G EAR99
W137B003A
PE-W137B004 WR-137 5.85 - 8.2 0.15 1.08:1 H-Bend CPR-137G EAR99
PEWRD180B001 WRD-180 18 - 40 0.4 1.3:1 E-Bend Square Cover UG EAR99
PEWRD180B002 WRD-180 18 - 40 0.4 1.3:1 H-Bend Square Cover UG EAR99
PEWRD650B001 WRD-650 6.5 - 18 0.4 1.25:1 E-Bend Square Cover UG EAR99
PEWRD650B002 WRD-650 6.5 - 18 0.4 1.25:1 H-Bend Square Cover UG EAR99
PEWRD750B001 WRD-750 7.5 - 18 0.4 1.25:1 E-Bend Square Cover UG EAR99
PEWRD750B002 WRD-750 7.5 - 18 0.4 1.25:1 H-Bend Square Cover UG EAR99
