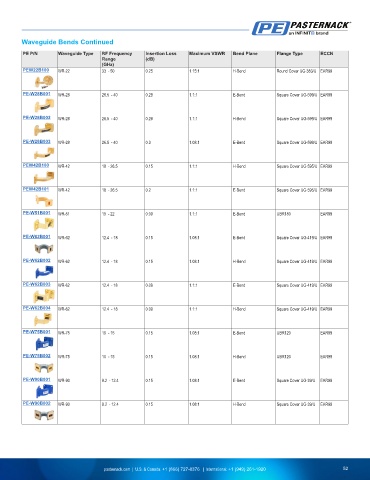

Page 53 - Waveguides Product Selection Guide
P. 53
Waveguide Bends Continued
PE P/N Waveguide Type RF Frequency Insertion Loss Maximum VSWR Bend Plane Flange Type ECCN
Range (dB)
(GHz)
PEW22B100 WR-22 33 - 50 0.25 1.15:1 H-Bend Round Cover UG-383/U EAR99
PE-W28B001 WR-28 26.5 - 40 0.28 1.1:1 E-Bend Square Cover UG-599/U EAR99
PE-W28B002 WR-28 26.5 - 40 0.28 1.1:1 H-Bend Square Cover UG-599/U EAR99
PE-W28B003 WR-28 26.5 - 40 0.3 1.08:1 E-Bend Square Cover UG-599/U EAR99
PEW42B100 WR-42 18 - 26.5 0.15 1.1:1 H-Bend Square Cover UG-595/U EAR99
PEW42B101 WR-42 18 - 26.5 0.2 1.1:1 E-Bend Square Cover UG-595/U EAR99
PE-W51B001 WR-51 15 - 22 0.09 1.1:1 E-Bend UBR180 EAR99
PE-W62B001 WR-62 12.4 - 18 0.15 1.08:1 E-Bend Square Cover UG-419/U EAR99
PE-W62B002 WR-62 12.4 - 18 0.15 1.08:1 H-Bend Square Cover UG-419/U EAR99
PE-W62B003 WR-62 12.4 - 18 0.09 1.1:1 E-Bend Square Cover UG-419/U EAR99
PE-W62B004 WR-62 12.4 - 18 0.09 1.1:1 H-Bend Square Cover UG-419/U EAR99
PE-W75B001 WR-75 10 - 15 0.15 1.08:1 E-Bend UBR120 EAR99
PE-W75B002 WR-75 10 - 15 0.15 1.08:1 H-Bend UBR120 EAR99
PE-W90B001 WR-90 8.2 - 12.4 0.15 1.08:1 E-Bend Square Cover UG-39/U EAR99
PE-W90B002 WR-90 8.2 - 12.4 0.15 1.08:1 H-Bend Square Cover UG-39/U EAR99
