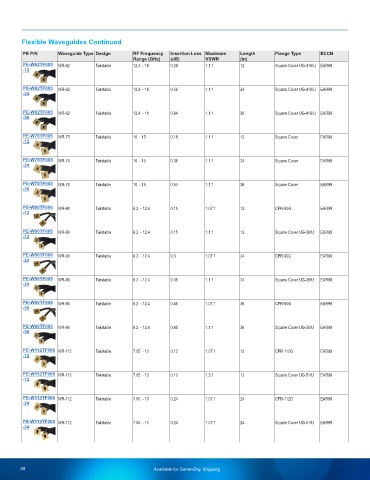

Page 50 - Waveguides Product Selection Guide

Flexible Waveguides Continued
PE P/N Waveguide Type Design RF Frequency Insertion Loss Maximum Length Flange Type ECCN
Range (GHz) (dB) VSWR (in)
PE-W62TF005 WR-62 Twistable 12.4 - 18 0.28 1.1:1 12 Square Cover UG-419/U EAR99
-12

PE-W62TF005 WR-62 Twistable 12.4 - 18 0.56 1.1:1 24 Square Cover UG-419/U EAR99
-24

PE-W62TF005 WR-62 Twistable 12.4 - 18 0.84 1.1:1 36 Square Cover UG-419/U EAR99
-36

PE-W75TF005 WR-75 Twistable 10 - 15 0.18 1.1:1 12 Square Cover EAR99
-12

PE-W75TF005 WR-75 Twistable 10 - 15 0.36 1.1:1 24 Square Cover EAR99
-24

PE-W75TF005 WR-75 Twistable 10 - 15 0.54 1.1:1 36 Square Cover EAR99
-36

PE-W90TF006 WR-90 Twistable 8.2 - 12.4 0.15 1.07:1 12 CPR-90G EAR99
-12

PE-W90TF005 WR-90 Twistable 8.2 - 12.4 0.15 1.1:1 12 Square Cover UG-39/U EAR99
-12

PE-W90TF006 WR-90 Twistable 8.2 - 12.4 0.3 1.07:1 24 CPR-90G EAR99
-24

PE-W90TF005 WR-90 Twistable 8.2 - 12.4 0.36 1.1:1 24 Square Cover UG-39/U EAR99
-24

PE-W90TF006 WR-90 Twistable 8.2 - 12.4 0.45 1.07:1 36 CPR-90G EAR99
-36

PE-W90TF005 WR-90 Twistable 8.2 - 12.4 0.45 1.1:1 36 Square Cover UG-39/U EAR99
-36

PE-W112TF006 WR-112 Twistable 7.05 - 10 0.12 1.07:1 12 CPR-112G EAR99
-12

PE-W112TF005 WR-112 Twistable 7.05 - 10 0.12 1.3:1 12 Square Cover UG-51/U EAR99
-12

PE-W112TF006 WR-112 Twistable 7.05 - 10 0.24 1.07:1 24 CPR-112G EAR99
-24

PE-W112TF005 WR-112 Twistable 7.05 - 10 0.24 1.07:1 24 Square Cover UG-51/U EAR99
-24

49 Available for Same-Day Shipping
