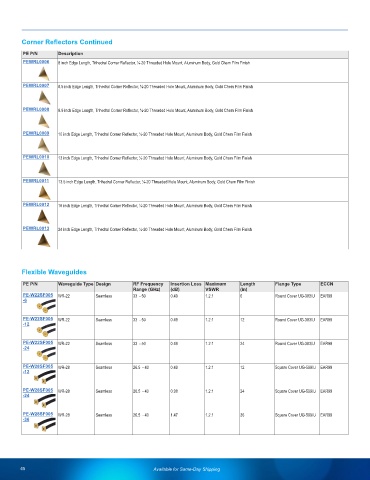

Page 46 - Waveguides Product Selection Guide
P. 46
Corner Reflectors Continued
PE P/N Description
PEWRL0006 8 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0007 8.5 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0008 8.9 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0009 10 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0010 13 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0011 13.5 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0012 16 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0013 24 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
Flexible Waveguides
PE P/N Waveguide Type Design RF Frequency Insertion Loss Maximum Length Flange Type ECCN
Range (GHz) (dB) VSWR (in)
PE-W22SF005 WR-22 Seamless 33 - 50 0.49 1.2:1 6 Round Cover UG-383/U EAR99
-6
PE-W22SF005 WR-22 Seamless 33 - 50 0.49 1.2:1 12 Round Cover UG-383/U EAR99
-12
PE-W22SF005 WR-22 Seamless 33 - 50 0.49 1.2:1 24 Round Cover UG-383/U EAR99
-24
PE-W28SF005 WR-28 Seamless 26.5 - 40 0.49 1.2:1 12 Square Cover UG-599/U EAR99
-12
PE-W28SF005 WR-28 Seamless 26.5 - 40 0.98 1.2:1 24 Square Cover UG-599/U EAR99
-24
PE-W28SF005 WR-28 Seamless 26.5 - 40 1.47 1.2:1 36 Square Cover UG-599/U EAR99
-36
45 Available for Same-Day Shipping
