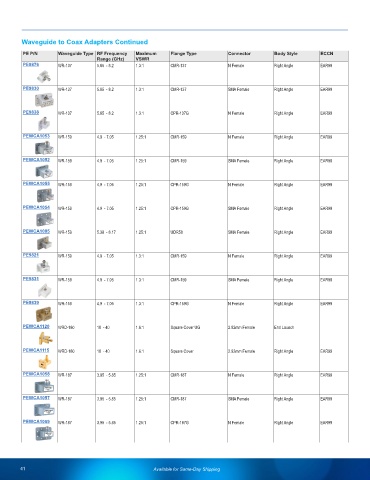

Page 42 - Waveguides Product Selection Guide
P. 42
Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PE9876 WR-137 5.85 - 8.2 1.3:1 CMR-137 N Female Right Angle EAR99
PE9830 WR-137 5.85 - 8.2 1.3:1 CMR-137 SMA Female Right Angle EAR99
PE9838 WR-137 5.85 - 8.2 1.3:1 CPR-137G N Female Right Angle EAR99
PEWCA1053 WR-159 4.9 - 7.05 1.25:1 CMR-159 N Female Right Angle EAR99
PEWCA1052 WR-159 4.9 - 7.05 1.25:1 CMR-159 SMA Female Right Angle EAR99
PEWCA1055 WR-159 4.9 - 7.05 1.25:1 CPR-159G N Female Right Angle EAR99
PEWCA1054 WR-159 4.9 - 7.05 1.25:1 CPR-159G SMA Female Right Angle EAR99
PEWCA1085 WR-159 5.38 - 8.17 1.25:1 UDR58 SMA Female Right Angle EAR99
PE9821 WR-159 4.9 - 7.05 1.3:1 CMR-159 N Female Right Angle EAR99
PE9831 WR-159 4.9 - 7.05 1.3:1 CMR-159 SMA Female Right Angle EAR99
PE9839 WR-159 4.9 - 7.05 1.3:1 CPR-159G N Female Right Angle EAR99
PEWCA1120 WRD-180 18 - 40 1.6:1 Square Cover UG 2.92mm Female End Launch
PEWCA1115 WRD-180 18 - 40 1.6:1 Square Cover 2.92mm Female Right Angle EAR99
PEWCA1058 WR-187 3.95 - 5.85 1.25:1 CMR-187 N Female Right Angle EAR99
PEWCA1057 WR-187 3.95 - 5.85 1.25:1 CMR-187 SMA Female Right Angle EAR99
PEWCA1059 WR-187 3.95 - 5.85 1.25:1 CPR-187G N Female Right Angle EAR99
41 Available for Same-Day Shipping
