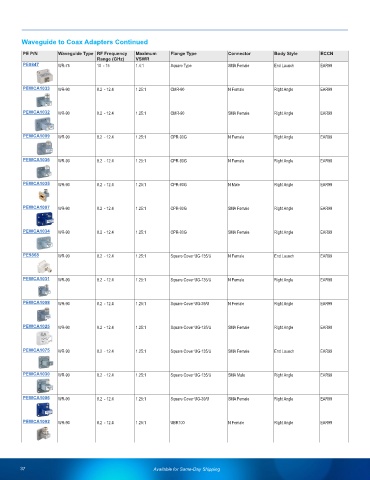

Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PE9847 WR-75 10 - 15 1.4:1 Square Type SMA Female End Launch EAR99
PEWCA1033 WR-90 8.2 - 12.4 1.25:1 CMR-90 N Female Right Angle EAR99
PEWCA1032 WR-90 8.2 - 12.4 1.25:1 CMR-90 SMA Female Right Angle EAR99
PEWCA1009 WR-90 8.2 - 12.4 1.25:1 CPR-90G N Female Right Angle EAR99
PEWCA1036 WR-90 8.2 - 12.4 1.25:1 CPR-90G N Female Right Angle EAR99
PEWCA1035 WR-90 8.2 - 12.4 1.25:1 CPR-90G N Male Right Angle EAR99
PEWCA1007 WR-90 8.2 - 12.4 1.25:1 CPR-90G SMA Female Right Angle EAR99
PEWCA1034 WR-90 8.2 - 12.4 1.25:1 CPR-90G SMA Female Right Angle EAR99
PE9868 WR-90 8.2 - 12.4 1.25:1 Square Cover UG-135/U N Female End Launch EAR99
PEWCA1031 WR-90 8.2 - 12.4 1.25:1 Square Cover UG-135/U N Female Right Angle EAR99
PEWCA1008 WR-90 8.2 - 12.4 1.25:1 Square Cover UG-39/U N Female Right Angle EAR99
PEWCA1025 WR-90 8.2 - 12.4 1.25:1 Square Cover UG-135/U SMA Female Right Angle EAR99
PEWCA1075 WR-90 8.2 - 12.4 1.25:1 Square Cover UG-135/U SMA Female End Launch EAR99
PEWCA1030 WR-90 8.2 - 12.4 1.25:1 Square Cover UG-135/U SMA Male Right Angle EAR99
PEWCA1006 WR-90 8.2 - 12.4 1.25:1 Square Cover UG-39/U SMA Female Right Angle EAR99
PEWCA1092 WR-90 8.2 - 12.4 1.25:1 UBR100 N Female Right Angle EAR99
