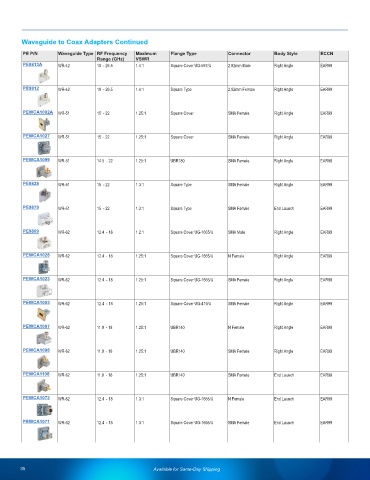

Page 36 - Waveguides Product Selection Guide
P. 36
Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PE9813A WR-42 18 - 26.5 1.4:1 Square Cover UG-597/U 2.92mm Male Right Angle EAR99
PE9812 WR-42 18 - 26.5 1.4:1 Square Type 2.92mm Female Right Angle EAR99
PEWCA1002A WR-51 15 - 22 1.25:1 Square Cover SMA Female Right Angle EAR99
PEWCA1027 WR-51 15 - 22 1.25:1 Square Cover SMA Female Right Angle EAR99
PEWCA1099 WR-51 14.5 - 22 1.25:1 UBR180 SMA Female Right Angle EAR99
PE9828 WR-51 15 - 22 1.3:1 Square Type SMA Female Right Angle EAR99
PE9879 WR-51 15 - 22 1.3:1 Square Type SMA Female End Launch EAR99
PE9809 WR-62 12.4 - 18 1.2:1 Square Cover UG-1665/U SMA Male Right Angle EAR99
PEWCA1028 WR-62 12.4 - 18 1.25:1 Square Cover UG-1665/U N Female Right Angle EAR99
PEWCA1023 WR-62 12.4 - 18 1.25:1 Square Cover UG-1665/U SMA Female Right Angle EAR99
PEWCA1003 WR-62 12.4 - 18 1.25:1 Square Cover UG-419/U SMA Female Right Angle EAR99
PEWCA1097 WR-62 11.9 - 18 1.25:1 UBR140 N Female Right Angle EAR99
PEWCA1098 WR-62 11.9 - 18 1.25:1 UBR140 SMA Female Right Angle EAR99
PEWCA1108 WR-62 11.9 - 18 1.25:1 UBR140 SMA Female End Launch EAR99
PEWCA1072 WR-62 12.4 - 18 1.3:1 Square Cover UG-1665/U N Female End Launch EAR99
PEWCA1071 WR-62 12.4 - 18 1.3:1 Square Cover UG-1665/U SMA Female End Launch EAR99
35 Available for Same-Day Shipping
