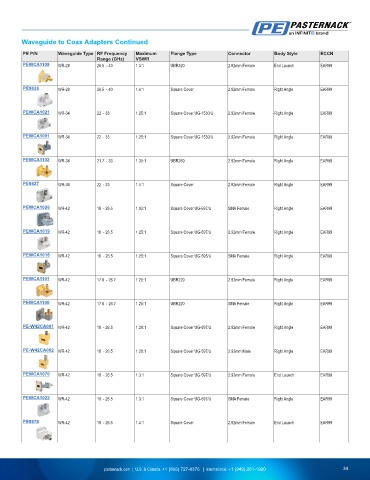

Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PEWCA1109 WR-28 26.5 - 40 1.3:1 UBR320 2.92mm Female End Launch EAR99
PE9826 WR-28 26.5 - 40 1.4:1 Square Cover 2.92mm Female Right Angle EAR99
PEWCA1021 WR-34 22 - 33 1.25:1 Square Cover UG-1530/U 2.92mm Female Right Angle EAR99
PEWCA1001 WR-34 22 - 33 1.25:1 Square Cover UG-1530/U 2.92mm Female Right Angle EAR99
PEWCA1102 WR-34 21.7 - 33 1.35:1 UBR260 2.92mm Female Right Angle EAR99
PE9827 WR-34 22 - 33 1.4:1 Square Cover 2.92mm Female Right Angle EAR99
PEWCA1026 WR-42 18 - 26.5 1.03:1 Square Cover UG-597/U SMA Female Right Angle EAR99
PEWCA1019 WR-42 18 - 26.5 1.25:1 Square Cover UG-597/U 2.92mm Female Right Angle EAR99
PEWCA1018 WR-42 18 - 26.5 1.25:1 Square Cover UG-595/U SMA Female Right Angle EAR99
PEWCA1101 WR-42 17.6 - 26.7 1.25:1 UBR220 2.92mm Female Right Angle EAR99
PEWCA1100 WR-42 17.6 - 26.7 1.25:1 UBR220 SMA Female Right Angle EAR99
PE-W42CA001 WR-42 18 - 26.5 1.29:1 Square Cover UG-597/U 2.92mm Female Right Angle EAR99
PE-W42CA002 WR-42 18 - 26.5 1.29:1 Square Cover UG-597/U 2.92mm Male Right Angle EAR99
PEWCA1070 WR-42 18 - 26.5 1.3:1 Square Cover UG-597/U 2.92mm Female End Launch EAR99
PEWCA1022 WR-42 18 - 26.5 1.3:1 Square Cover UG-597/U SMA Female Right Angle EAR99
PE9878 WR-42 18 - 26.5 1.4:1 Square Cover 2.92mm Female End Launch EAR99
