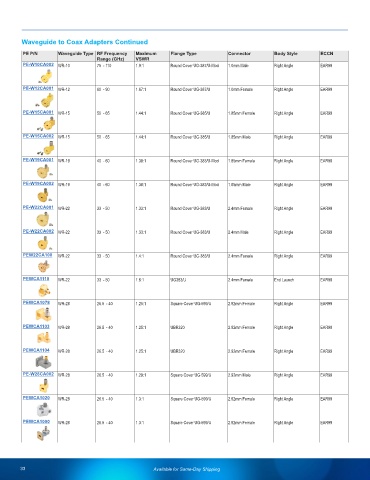

Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PE-W10CA002 WR-10 75 - 110 1.9:1 Round Cover UG-387/U-Mod 1.0mm Male Right Angle EAR99
PE-W12CA001 WR-12 60 - 90 1.67:1 Round Cover UG-387/U 1.0mm Female Right Angle EAR99
PE-W15CA001 WR-15 50 - 65 1.44:1 Round Cover UG-385/U 1.85mm Female Right Angle EAR99
PE-W15CA002 WR-15 50 - 65 1.44:1 Round Cover UG-385/U 1.85mm Male Right Angle EAR99
PE-W19CA001 WR-19 40 - 60 1.38:1 Round Cover UG-383/U-Mod 1.85mm Female Right Angle EAR99
PE-W19CA002 WR-19 40 - 60 1.38:1 Round Cover UG-383/U-Mod 1.85mm Male Right Angle EAR99
PE-W22CA001 WR-22 33 - 50 1.33:1 Round Cover UG-383/U 2.4mm Female Right Angle EAR99
PE-W22CA002 WR-22 33 - 50 1.33:1 Round Cover UG-383/U 2.4mm Male Right Angle EAR99
PEW22CA100 WR-22 33 - 50 1.4:1 Round Cover UG-383/U 2.4mm Female Right Angle EAR99
PEWCA1110 WR-22 33 - 50 1.6:1 UG383/U 2.4mm Female End Launch EAR99
PEWCA1078 WR-28 26.5 - 40 1.25:1 Square Cover UG-599/U 2.92mm Female Right Angle EAR99
PEWCA1103 WR-28 26.5 - 40 1.25:1 UBR320 2.92mm Female Right Angle EAR99
PEWCA1104 WR-28 26.5 - 40 1.25:1 UBR320 2.92mm Female Right Angle EAR99
PE-W28CA002 WR-28 26.5 - 40 1.29:1 Square Cover UG-599/U 2.92mm Male Right Angle EAR99
PEWCA1020 WR-28 26.5 - 40 1.3:1 Square Cover UG-599/U 2.92mm Female Right Angle EAR99
PEWCA1000 WR-28 26.5 - 40 1.3:1 Square Cover UG-599/U 2.92mm Female Right Angle EAR99
