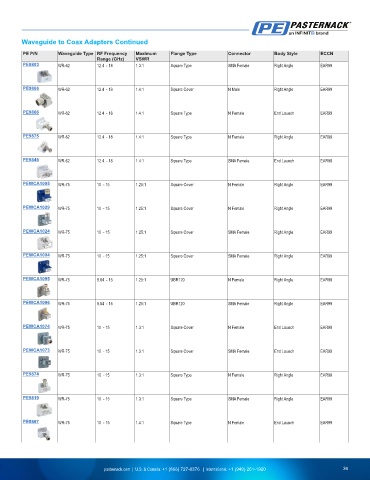

Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PE9803 WR-62 12.4 - 18 1.3:1 Square Type SMA Female Right Angle EAR99
PE9806 WR-62 12.4 - 18 1.4:1 Square Cover N Male Right Angle EAR99
PE9866 WR-62 12.4 - 18 1.4:1 Square Type N Female End Launch EAR99
PE9875 WR-62 12.4 - 18 1.4:1 Square Type N Female Right Angle EAR99
PE9846 WR-62 12.4 - 18 1.4:1 Square Type SMA Female End Launch EAR99
PEWCA1005 WR-75 10 - 15 1.25:1 Square Cover N Female Right Angle EAR99
PEWCA1029 WR-75 10 - 15 1.25:1 Square Cover N Female Right Angle EAR99
PEWCA1024 WR-75 10 - 15 1.25:1 Square Cover SMA Female Right Angle EAR99
PEWCA1004 WR-75 10 - 15 1.25:1 Square Cover SMA Female Right Angle EAR99
PEWCA1095 WR-75 9.84 - 15 1.25:1 UBR120 N Female Right Angle EAR99
PEWCA1096 WR-75 9.84 - 15 1.25:1 UBR120 SMA Female Right Angle EAR99
PEWCA1074 WR-75 10 - 15 1.3:1 Square Cover N Female End Launch EAR99
PEWCA1073 WR-75 10 - 15 1.3:1 Square Cover SMA Female End Launch EAR99
PE9874 WR-75 10 - 15 1.3:1 Square Type N Female Right Angle EAR99
PE9819 WR-75 10 - 15 1.3:1 Square Type SMA Female Right Angle EAR99
PE9867 WR-75 10 - 15 1.4:1 Square Type N Female End Launch EAR99
