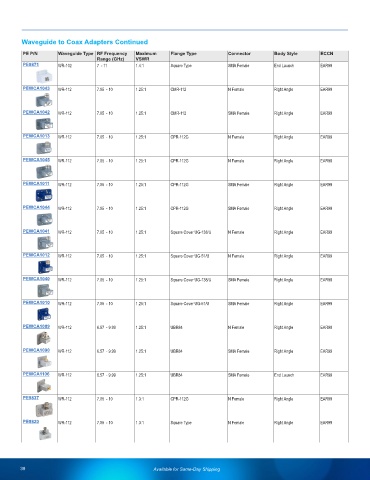

Page 40 - Waveguides Product Selection Guide
P. 40
Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PE9871 WR-102 7 - 11 1.4:1 Square Type SMA Female End Launch EAR99
PEWCA1043 WR-112 7.05 - 10 1.25:1 CMR-112 N Female Right Angle EAR99
PEWCA1042 WR-112 7.05 - 10 1.25:1 CMR-112 SMA Female Right Angle EAR99
PEWCA1013 WR-112 7.05 - 10 1.25:1 CPR-112G N Female Right Angle EAR99
PEWCA1045 WR-112 7.05 - 10 1.25:1 CPR-112G N Female Right Angle EAR99
PEWCA1011 WR-112 7.05 - 10 1.25:1 CPR-112G SMA Female Right Angle EAR99
PEWCA1044 WR-112 7.05 - 10 1.25:1 CPR-112G SMA Female Right Angle EAR99
PEWCA1041 WR-112 7.05 - 10 1.25:1 Square Cover UG-138/U N Female Right Angle EAR99
PEWCA1012 WR-112 7.05 - 10 1.25:1 Square Cover UG-51/U N Female Right Angle EAR99
PEWCA1040 WR-112 7.05 - 10 1.25:1 Square Cover UG-138/U SMA Female Right Angle EAR99
PEWCA1010 WR-112 7.05 - 10 1.25:1 Square Cover UG-51/U SMA Female Right Angle EAR99
PEWCA1089 WR-112 6.57 - 9.99 1.25:1 UBR84 N Female Right Angle EAR99
PEWCA1090 WR-112 6.57 - 9.99 1.25:1 UBR84 SMA Female Right Angle EAR99
PEWCA1106 WR-112 6.57 - 9.99 1.25:1 UBR84 SMA Female End Launch EAR99
PE9837 WR-112 7.05 - 10 1.3:1 CPR-112G N Female Right Angle EAR99
PE9820 WR-112 7.05 - 10 1.3:1 Square Type N Female Right Angle EAR99
