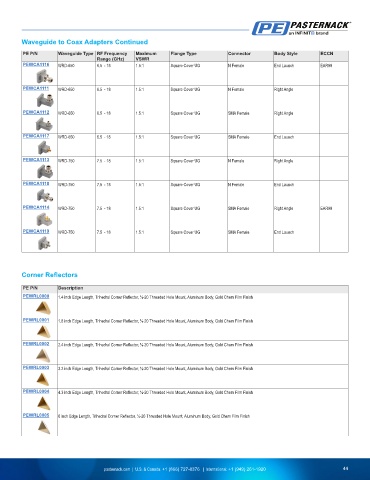

Page 45 - Waveguides Product Selection Guide
P. 45
Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PEWCA1116 WRD-650 6.5 - 18 1.5:1 Square Cover UG N Female End Launch EAR99
PEWCA1111 WRD-650 6.5 - 18 1.5:1 Square Cover UG N Female Right Angle
PEWCA1112 WRD-650 6.5 - 18 1.5:1 Square Cover UG SMA Female Right Angle
PEWCA1117 WRD-650 6.5 - 18 1.5:1 Square Cover UG SMA Female End Launch
PEWCA1113 WRD-750 7.5 - 18 1.5:1 Square Cover UG N Female Right Angle
PEWCA1118 WRD-750 7.5 - 18 1.5:1 Square Cover UG N Female End Launch
PEWCA1114 WRD-750 7.5 - 18 1.5:1 Square Cover UG SMA Female Right Angle EAR99
PEWCA1119 WRD-750 7.5 - 18 1.5:1 Square Cover UG SMA Female End Launch
Corner Reflectors
PE P/N Description
PEWRL0000 1.4 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0001 1.8 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0002 2.4 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0003 3.2 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0004 4.3 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
PEWRL0005 6 inch Edge Length, Trihedral Corner Reflector, ¼-20 Threaded Hole Mount, Aluminum Body, Gold Chem Film Finish
