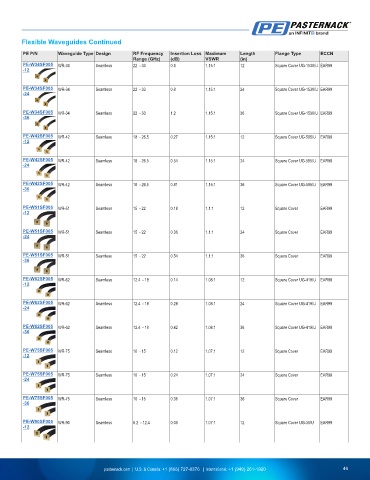

Page 47 - Waveguides Product Selection Guide

Flexible Waveguides Continued
PE P/N Waveguide Type Design RF Frequency Insertion Loss Maximum Length Flange Type ECCN
Range (GHz) (dB) VSWR (in)
PE-W34SF005 WR-34 Seamless 22 - 33 0.4 1.15:1 12 Square Cover UG-1530/U EAR99
-12

PE-W34SF005 WR-34 Seamless 22 - 33 0.8 1.15:1 24 Square Cover UG-1530/U EAR99
-24

PE-W34SF005 WR-34 Seamless 22 - 33 1.2 1.15:1 36 Square Cover UG-1530/U EAR99
-36

PE-W42SF005 WR-42 Seamless 18 - 26.5 0.27 1.15:1 12 Square Cover UG-595/U EAR99
-12

PE-W42SF005 WR-42 Seamless 18 - 26.5 0.54 1.15:1 24 Square Cover UG-595/U EAR99
-24

PE-W42SF005 WR-42 Seamless 18 - 26.5 0.81 1.15:1 36 Square Cover UG-595/U EAR99
-36

PE-W51SF005 WR-51 Seamless 15 - 22 0.18 1.1:1 12 Square Cover EAR99
-12

PE-W51SF005 WR-51 Seamless 15 - 22 0.36 1.1:1 24 Square Cover EAR99
-24

PE-W51SF005 WR-51 Seamless 15 - 22 0.54 1.1:1 36 Square Cover EAR99
-36

PE-W62SF005 WR-62 Seamless 12.4 - 18 0.14 1.08:1 12 Square Cover UG-419/U EAR99
-12

PE-W62SF005 WR-62 Seamless 12.4 - 18 0.28 1.08:1 24 Square Cover UG-419/U EAR99
-24

PE-W62SF005 WR-62 Seamless 12.4 - 18 0.42 1.08:1 36 Square Cover UG-419/U EAR99
-36

PE-W75SF005 WR-75 Seamless 10 - 15 0.12 1.07:1 12 Square Cover EAR99
-12

PE-W75SF005 WR-75 Seamless 10 - 15 0.24 1.07:1 24 Square Cover EAR99
-24

PE-W75SF005 WR-75 Seamless 10 - 15 0.36 1.07:1 36 Square Cover EAR99
-36

PE-W90SF005 WR-90 Seamless 8.2 - 12.4 0.09 1.07:1 12 Square Cover UG-39/U EAR99
-12
