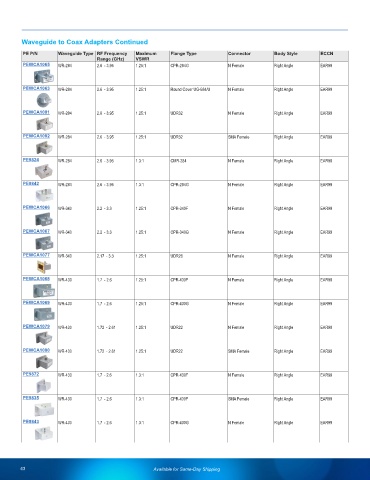

Page 44 - Waveguides Product Selection Guide

Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PEWCA1065 WR-284 2.6 - 3.95 1.25:1 CPR-284G N Female Right Angle EAR99

PEWCA1063 WR-284 2.6 - 3.95 1.25:1 Round Cover UG-584/U N Female Right Angle EAR99

PEWCA1081 WR-284 2.6 - 3.95 1.25:1 UDR32 N Female Right Angle EAR99

PEWCA1082 WR-284 2.6 - 3.95 1.25:1 UDR32 SMA Female Right Angle EAR99

PE9824 WR-284 2.6 - 3.95 1.3:1 CMR-284 N Female Right Angle EAR99

PE9842 WR-284 2.6 - 3.95 1.3:1 CPR-284G N Female Right Angle EAR99

PEWCA1066 WR-340 2.2 - 3.3 1.25:1 CPR-340F N Female Right Angle EAR99

PEWCA1067 WR-340 2.2 - 3.3 1.25:1 CPR-340G N Female Right Angle EAR99

PEWCA1077 WR-340 2.17 - 3.3 1.25:1 UDR26 N Female Right Angle EAR99

PEWCA1068 WR-430 1.7 - 2.6 1.25:1 CPR-430F N Female Right Angle EAR99

PEWCA1069 WR-430 1.7 - 2.6 1.25:1 CPR-430G N Female Right Angle EAR99

PEWCA1079 WR-430 1.72 - 2.61 1.25:1 UDR22 N Female Right Angle EAR99

PEWCA1080 WR-430 1.72 - 2.61 1.25:1 UDR22 SMA Female Right Angle EAR99

PE9872 WR-430 1.7 - 2.6 1.3:1 CPR-430F N Female Right Angle EAR99

PE9835 WR-430 1.7 - 2.6 1.3:1 CPR-430F SMA Female Right Angle EAR99

PE9843 WR-430 1.7 - 2.6 1.3:1 CPR-430G N Female Right Angle EAR99

43 Available for Same-Day Shipping
