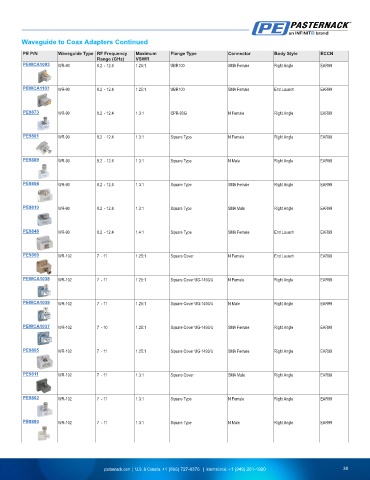

Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PEWCA1093 WR-90 8.2 - 12.4 1.25:1 UBR100 SMA Female Right Angle EAR99
PEWCA1107 WR-90 8.2 - 12.4 1.25:1 UBR100 SMA Female End Launch EAR99
PE9873 WR-90 8.2 - 12.4 1.3:1 CPR-90G N Female Right Angle EAR99
PE9801 WR-90 8.2 - 12.4 1.3:1 Square Type N Female Right Angle EAR99
PE9889 WR-90 8.2 - 12.4 1.3:1 Square Type N Male Right Angle EAR99
PE9804 WR-90 8.2 - 12.4 1.3:1 Square Type SMA Female Right Angle EAR99
PE9810 WR-90 8.2 - 12.4 1.3:1 Square Type SMA Male Right Angle EAR99
PE9848 WR-90 8.2 - 12.4 1.4:1 Square Type SMA Female End Launch EAR99
PE9869 WR-102 7 - 11 1.25:1 Square Cover N Female End Launch EAR99
PEWCA1038 WR-102 7 - 11 1.25:1 Square Cover UG-1493/U N Female Right Angle EAR99
PEWCA1039 WR-102 7 - 11 1.25:1 Square Cover UG-1493/U N Male Right Angle EAR99
PEWCA1037 WR-102 7 - 10 1.25:1 Square Cover UG-1493/U SMA Female Right Angle EAR99
PE9805 WR-102 7 - 11 1.25:1 Square Cover UG-1493/U SMA Female Right Angle EAR99
PE9811 WR-102 7 - 11 1.3:1 Square Cover SMA Male Right Angle EAR99
PE9802 WR-102 7 - 11 1.3:1 Square Type N Female Right Angle EAR99
PE9890 WR-102 7 - 11 1.3:1 Square Type N Male Right Angle EAR99
