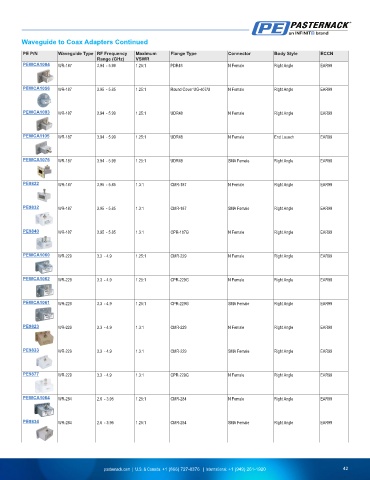

Page 43 - Waveguides Product Selection Guide
P. 43
Waveguide to Coax Adapters Continued
PE P/N Waveguide Type RF Frequency Maximum Flange Type Connector Body Style ECCN
Range (GHz) VSWR
PEWCA1084 WR-187 3.94 - 5.99 1.25:1 PDR48 N Female Right Angle EAR99
PEWCA1056 WR-187 3.95 - 5.85 1.25:1 Round Cover UG-407/U N Female Right Angle EAR99
PEWCA1083 WR-187 3.94 - 5.99 1.25:1 UDR48 N Female Right Angle EAR99
PEWCA1105 WR-187 3.94 - 5.99 1.25:1 UDR48 N Female End Launch EAR99
PEWCA1076 WR-187 3.94 - 5.99 1.25:1 UDR48 SMA Female Right Angle EAR99
PE9822 WR-187 3.95 - 5.85 1.3:1 CMR-187 N Female Right Angle EAR99
PE9832 WR-187 3.95 - 5.85 1.3:1 CMR-187 SMA Female Right Angle EAR99
PE9840 WR-187 3.95 - 5.85 1.3:1 CPR-187G N Female Right Angle EAR99
PEWCA1060 WR-229 3.3 - 4.9 1.25:1 CMR-229 N Female Right Angle EAR99
PEWCA1062 WR-229 3.3 - 4.9 1.25:1 CPR-229G N Female Right Angle EAR99
PEWCA1061 WR-229 3.3 - 4.9 1.25:1 CPR-229G SMA Female Right Angle EAR99
PE9823 WR-229 3.3 - 4.9 1.3:1 CMR-229 N Female Right Angle EAR99
PE9833 WR-229 3.3 - 4.9 1.3:1 CMR-229 SMA Female Right Angle EAR99
PE9877 WR-229 3.3 - 4.9 1.3:1 CPR-229G N Female Right Angle EAR99
PEWCA1064 WR-284 2.6 - 3.95 1.25:1 CMR-284 N Female Right Angle EAR99
PE9834 WR-284 2.6 - 3.95 1.25:1 CMR-284 SMA Female Right Angle EAR99
