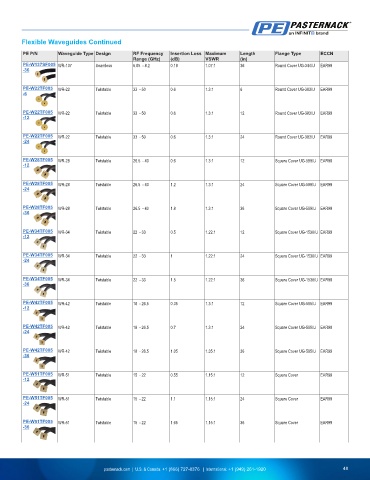

Page 49 - Waveguides Product Selection Guide

Flexible Waveguides Continued
PE P/N Waveguide Type Design RF Frequency Insertion Loss Maximum Length Flange Type ECCN
Range (GHz) (dB) VSWR (in)
PE-W137SF005 WR-137 Seamless 5.85 - 8.2 0.18 1.07:1 36 Round Cover UG-344/U EAR99
-36

PE-W22TF005 WR-22 Twistable 33 - 50 0.6 1.3:1 6 Round Cover UG-383/U EAR99
-6

PE-W22TF005 WR-22 Twistable 33 - 50 0.6 1.3:1 12 Round Cover UG-383/U EAR99
-12

PE-W22TF005 WR-22 Twistable 33 - 50 0.6 1.3:1 24 Round Cover UG-383/U EAR99
-24

PE-W28TF005 WR-28 Twistable 26.5 - 40 0.6 1.3:1 12 Square Cover UG-599/U EAR99
-12

PE-W28TF005 WR-28 Twistable 26.5 - 40 1.2 1.3:1 24 Square Cover UG-599/U EAR99
-24

PE-W28TF005 WR-28 Twistable 26.5 - 40 1.8 1.3:1 36 Square Cover UG-599/U EAR99
-36

PE-W34TF005 WR-34 Twistable 22 - 33 0.5 1.22:1 12 Square Cover UG-1530/U EAR99
-12

PE-W34TF005 WR-34 Twistable 22 - 33 1 1.22:1 24 Square Cover UG-1530/U EAR99
-24

PE-W34TF005 WR-34 Twistable 22 - 33 1.5 1.22:1 36 Square Cover UG-1530/U EAR99
-36

PE-W42TF005 WR-42 Twistable 18 - 26.5 0.35 1.3:1 12 Square Cover UG-595/U EAR99
-12

PE-W42TF005 WR-42 Twistable 18 - 26.5 0.7 1.3:1 24 Square Cover UG-595/U EAR99
-24

PE-W42TF005 WR-42 Twistable 18 - 26.5 1.05 1.35:1 36 Square Cover UG-595/U EAR99
-36

PE-W51TF005 WR-51 Twistable 15 - 22 0.55 1.15:1 12 Square Cover EAR99
-12

PE-W51TF005 WR-51 Twistable 15 - 22 1.1 1.15:1 24 Square Cover EAR99
-24

PE-W51TF005 WR-51 Twistable 15 - 22 1.65 1.15:1 36 Square Cover EAR99
-36
