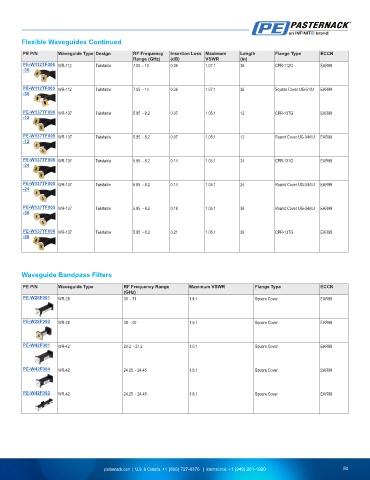

Page 51 - Waveguides Product Selection Guide
P. 51
Flexible Waveguides Continued
PE P/N Waveguide Type Design RF Frequency Insertion Loss Maximum Length Flange Type ECCN
Range (GHz) (dB) VSWR (in)
PE-W112TF006 WR-112 Twistable 7.05 - 10 0.36 1.07:1 36 CPR-112G EAR99
-36
PE-W112TF005 WR-112 Twistable 7.05 - 10 0.36 1.07:1 36 Square Cover UG-51/U EAR99
-36
PE-W137TF006 WR-137 Twistable 5.85 - 8.2 0.07 1.05:1 12 CPR-137G EAR99
-12
PE-W137TF005 WR-137 Twistable 5.85 - 8.2 0.07 1.05:1 12 Round Cover UG-344/U EAR99
-12
PE-W137TF006 WR-137 Twistable 5.85 - 8.2 0.14 1.05:1 24 CPR-137G EAR99
-24
PE-W137TF005 WR-137 Twistable 5.85 - 8.2 0.14 1.05:1 24 Round Cover UG-344/U EAR99
-24
PE-W137TF005 WR-137 Twistable 5.85 - 8.2 0.18 1.05:1 36 Round Cover UG-344/U EAR99
-36
PE-W137TF006 WR-137 Twistable 5.85 - 8.2 0.21 1.05:1 36 CPR-137G EAR99
-36
Waveguide Bandpass Filters
PE P/N Waveguide Type RF Frequency Range Maximum VSWR Flange Type ECCN
(GHz)
PE-W28F001 WR-28 30 - 31 1.4:1 Square Cover EAR99
PE-W28F002 WR-28 38 - 40 1.5:1 Square Cover EAR99
PE-W42F001 WR-42 20.2 - 21.2 1.5:1 Square Cover EAR99
PE-W42F004 WR-42 24.25 - 24.45 1.5:1 Square Cover EAR99
PE-W42F002 WR-42 24.25 - 24.45 1.8:1 Square Cover EAR99
50
pasternack.com | U.S. & Canada: +1 (866) 727-8376 | International: +1 (949) 261-1920 50
