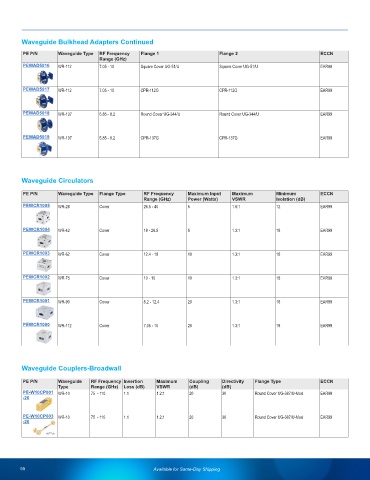

Page 56 - Waveguides Product Selection Guide

Waveguide Bulkhead Adapters Continued
PE P/N Waveguide Type RF Frequency Flange 1 Flange 2 ECCN
Range (GHz)
PEWAD5016 WR-112 7.05 - 10 Square Cover UG-51/U Square Cover UG-51/U EAR99

PEWAD5017 WR-112 7.05 - 10 CPR-112G CPR-112G EAR99

PEWAD5018 WR-137 5.85 - 8.2 Round Cover UG-344/U Round Cover UG-344/U EAR99

PEWAD5019 WR-137 5.85 - 8.2 CPR-137G CPR-137G EAR99

Waveguide Circulators

PE P/N Waveguide Type Flange Type RF Frequency Maximum Input Maximum Minimum ECCN
Range (GHz) Power (Watts) VSWR Isolation (dB)
PEWCR1005 WR-28 Cover 26.5 - 40 5 1.6:1 12 EAR99

PEWCR1004 WR-42 Cover 18 - 26.5 5 1.3:1 18 EAR99

PEWCR1003 WR-62 Cover 12.4 - 18 10 1.3:1 18 EAR99

PEWCR1002 WR-75 Cover 10 - 15 10 1.3:1 18 EAR99

PEWCR1001 WR-90 Cover 8.2 - 12.4 20 1.3:1 18 EAR99

PEWCR1000 WR-112 Cover 7.05 - 10 20 1.3:1 18 EAR99

Waveguide Couplers-Broadwall

PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PE-W10CP001 WR-10 75 - 110 1.1 1.2:1 20 30 Round Cover UG-387/U-Mod EAR99
-20

PE-W10CP003 WR-10 75 - 110 1.1 1.2:1 20 30 Round Cover UG-387/U-Mod EAR99
-20

55 Available for Same-Day Shipping
