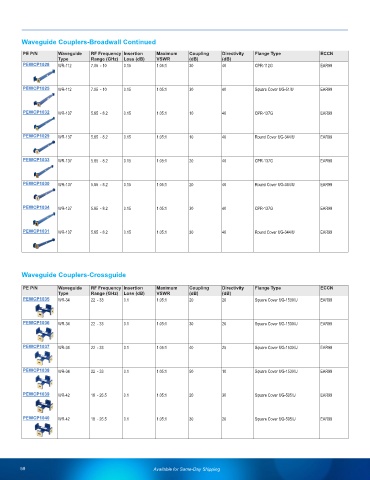

Waveguide Couplers-Broadwall Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCP1028 WR-112 7.05 - 10 0.15 1.05:1 30 40 CPR-112G EAR99

PEWCP1025 WR-112 7.05 - 10 0.15 1.05:1 30 40 Square Cover UG-51/U EAR99

PEWCP1032 WR-137 5.85 - 8.2 0.15 1.05:1 10 40 CPR-137G EAR99

PEWCP1029 WR-137 5.85 - 8.2 0.15 1.05:1 10 40 Round Cover UG-344/U EAR99

PEWCP1033 WR-137 5.85 - 8.2 0.15 1.05:1 20 40 CPR-137G EAR99

PEWCP1030 WR-137 5.85 - 8.2 0.15 1.05:1 20 40 Round Cover UG-344/U EAR99

PEWCP1034 WR-137 5.85 - 8.2 0.15 1.05:1 30 40 CPR-137G EAR99

PEWCP1031 WR-137 5.85 - 8.2 0.15 1.05:1 30 40 Round Cover UG-344/U EAR99

Waveguide Couplers-Crossguide

PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCP1035 WR-34 22 - 33 0.1 1.05:1 20 20 Square Cover UG-1530/U EAR99

PEWCP1036 WR-34 22 - 33 0.1 1.05:1 30 20 Square Cover UG-1530/U EAR99

PEWCP1037 WR-34 22 - 33 0.1 1.05:1 40 25 Square Cover UG-1530/U EAR99

PEWCP1038 WR-34 22 - 33 0.1 1.05:1 50 10 Square Cover UG-1530/U EAR99

PEWCP1039 WR-42 18 - 26.5 0.1 1.05:1 20 30 Square Cover UG-595/U EAR99

PEWCP1040 WR-42 18 - 26.5 0.1 1.05:1 30 20 Square Cover UG-595/U EAR99
