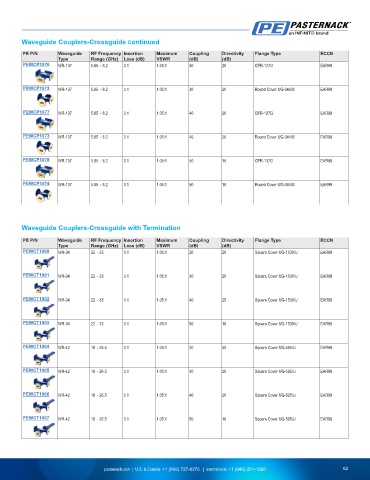

Page 63 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCP1076 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 CPR-137G EAR99

PEWCP1072 WR-137 5.85 - 8.2 0.1 1.05:1 30 20 Round Cover UG-344/U EAR99

PEWCP1077 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 CPR-137G EAR99

PEWCP1073 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 Round Cover UG-344/U EAR99

PEWCP1078 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 CPR-137G EAR99

PEWCP1074 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 Round Cover UG-344/U EAR99

Waveguide Couplers-Crossguide with Termination

PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1000 WR-34 22 - 33 0.1 1.05:1 20 20 Square Cover UG-1530/U EAR99

PEWCT1001 WR-34 22 - 33 0.1 1.05:1 30 20 Square Cover UG-1530/U EAR99

PEWCT1002 WR-34 22 - 33 0.1 1.05:1 40 25 Square Cover UG-1530/U EAR99

PEWCT1003 WR-34 22 - 33 0.1 1.05:1 50 10 Square Cover UG-1530/U EAR99

PEWCT1004 WR-42 18 - 26.5 0.1 1.05:1 20 30 Square Cover UG-595/U EAR99

PEWCT1005 WR-42 18 - 26.5 0.1 1.05:1 30 20 Square Cover UG-595/U EAR99

PEWCT1006 WR-42 18 - 26.5 0.1 1.05:1 40 20 Square Cover UG-595/U EAR99

PEWCT1007 WR-42 18 - 26.5 0.1 1.05:1 50 10 Square Cover UG-595/U EAR99
