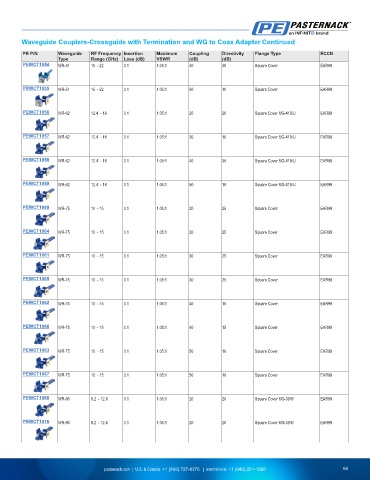

Page 67 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide with Termination and WG to Coax Adapter Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1054 WR-51 15 - 22 0.1 1.05:1 40 30 Square Cover EAR99

PEWCT1055 WR-51 15 - 22 0.1 1.05:1 50 10 Square Cover EAR99

PEWCT1056 WR-62 12.4 - 18 0.1 1.05:1 20 20 Square Cover UG-419/U EAR99

PEWCT1057 WR-62 12.4 - 18 0.1 1.05:1 30 10 Square Cover UG-419/U EAR99

PEWCT1058 WR-62 12.4 - 18 0.1 1.05:1 40 30 Square Cover UG-419/U EAR99

PEWCT1059 WR-62 12.4 - 18 0.1 1.05:1 50 10 Square Cover UG-419/U EAR99

PEWCT1060 WR-75 10 - 15 0.1 1.05:1 20 25 Square Cover EAR99

PEWCT1064 WR-75 10 - 15 0.1 1.05:1 20 25 Square Cover EAR99

PEWCT1061 WR-75 10 - 15 0.1 1.05:1 30 25 Square Cover EAR99

PEWCT1065 WR-75 10 - 15 0.1 1.05:1 30 25 Square Cover EAR99

PEWCT1062 WR-75 10 - 15 0.1 1.05:1 40 15 Square Cover EAR99

PEWCT1066 WR-75 10 - 15 0.1 1.05:1 40 15 Square Cover EAR99

PEWCT1063 WR-75 10 - 15 0.1 1.05:1 50 10 Square Cover EAR99

PEWCT1067 WR-75 10 - 15 0.1 1.05:1 50 10 Square Cover EAR99

PEWCT1068 WR-90 8.2 - 12.4 0.1 1.05:1 20 20 Square Cover UG-39/U EAR99

PEWCT1076 WR-90 8.2 - 12.4 0.1 1.05:1 20 20 Square Cover UG-39/U EAR99
