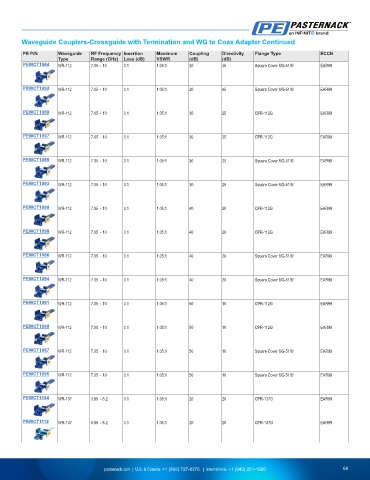

Page 69 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide with Termination and WG to Coax Adapter Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1084 WR-112 7.05 - 10 0.1 1.05:1 20 45 Square Cover UG-51/U EAR99

PEWCT1092 WR-112 7.05 - 10 0.1 1.05:1 20 45 Square Cover UG-51/U EAR99

PEWCT1089 WR-112 7.05 - 10 0.1 1.05:1 30 25 CPR-112G EAR99

PEWCT1097 WR-112 7.05 - 10 0.1 1.05:1 30 25 CPR-112G EAR99

PEWCT1085 WR-112 7.05 - 10 0.1 1.05:1 30 25 Square Cover UG-51/U EAR99

PEWCT1093 WR-112 7.05 - 10 0.1 1.05:1 30 25 Square Cover UG-51/U EAR99

PEWCT1090 WR-112 7.05 - 10 0.1 1.05:1 40 20 CPR-112G EAR99

PEWCT1098 WR-112 7.05 - 10 0.1 1.05:1 40 20 CPR-112G EAR99

PEWCT1086 WR-112 7.05 - 10 0.1 1.05:1 40 20 Square Cover UG-51/U EAR99

PEWCT1094 WR-112 7.05 - 10 0.1 1.05:1 40 20 Square Cover UG-51/U EAR99

PEWCT1091 WR-112 7.05 - 10 0.1 1.05:1 50 10 CPR-112G EAR99

PEWCT1099 WR-112 7.05 - 10 0.1 1.05:1 50 10 CPR-112G EAR99

PEWCT1087 WR-112 7.05 - 10 0.1 1.05:1 50 10 Square Cover UG-51/U EAR99

PEWCT1095 WR-112 7.05 - 10 0.1 1.05:1 50 10 Square Cover UG-51/U EAR99

PEWCT1104 WR-137 5.85 - 8.2 0.1 1.05:1 20 20 CPR-137G EAR99

PEWCT1112 WR-137 5.85 - 8.2 0.1 1.05:1 20 20 CPR-137G EAR99
