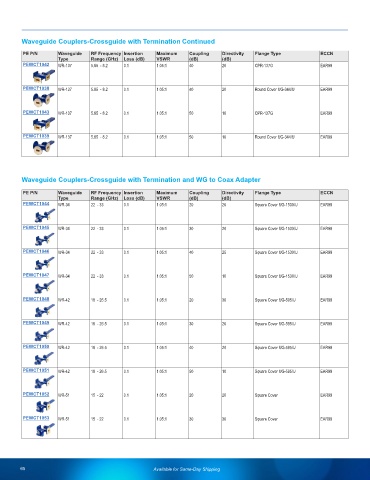

Page 66 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide with Termination Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1042 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 CPR-137G EAR99

PEWCT1038 WR-137 5.85 - 8.2 0.1 1.05:1 40 20 Round Cover UG-344/U EAR99

PEWCT1043 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 CPR-137G EAR99

PEWCT1039 WR-137 5.85 - 8.2 0.1 1.05:1 50 10 Round Cover UG-344/U EAR99

Waveguide Couplers-Crossguide with Termination and WG to Coax Adapter

PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1044 WR-34 22 - 33 0.1 1.05:1 20 20 Square Cover UG-1530/U EAR99

PEWCT1045 WR-34 22 - 33 0.1 1.05:1 30 20 Square Cover UG-1530/U EAR99

PEWCT1046 WR-34 22 - 33 0.1 1.05:1 40 25 Square Cover UG-1530/U EAR99

PEWCT1047 WR-34 22 - 33 0.1 1.05:1 50 10 Square Cover UG-1530/U EAR99

PEWCT1048 WR-42 18 - 26.5 0.1 1.05:1 20 30 Square Cover UG-595/U EAR99

PEWCT1049 WR-42 18 - 26.5 0.1 1.05:1 30 20 Square Cover UG-595/U EAR99

PEWCT1050 WR-42 18 - 26.5 0.1 1.05:1 40 20 Square Cover UG-595/U EAR99

PEWCT1051 WR-42 18 - 26.5 0.1 1.05:1 50 10 Square Cover UG-595/U EAR99

PEWCT1052 WR-51 15 - 22 0.1 1.05:1 20 20 Square Cover EAR99

PEWCT1053 WR-51 15 - 22 0.1 1.05:1 30 30 Square Cover EAR99
