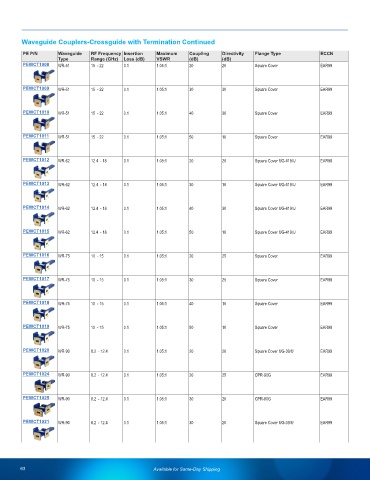

Page 64 - Waveguides Product Selection Guide

Waveguide Couplers-Crossguide with Termination Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PEWCT1008 WR-51 15 - 22 0.1 1.05:1 20 20 Square Cover EAR99

PEWCT1009 WR-51 15 - 22 0.1 1.05:1 30 30 Square Cover EAR99

PEWCT1010 WR-51 15 - 22 0.1 1.05:1 40 30 Square Cover EAR99

PEWCT1011 WR-51 15 - 22 0.1 1.05:1 50 10 Square Cover EAR99

PEWCT1012 WR-62 12.4 - 18 0.1 1.05:1 20 20 Square Cover UG-419/U EAR99

PEWCT1013 WR-62 12.4 - 18 0.1 1.05:1 30 10 Square Cover UG-419/U EAR99

PEWCT1014 WR-62 12.4 - 18 0.1 1.05:1 40 30 Square Cover UG-419/U EAR99

PEWCT1015 WR-62 12.4 - 18 0.1 1.05:1 50 10 Square Cover UG-419/U EAR99

PEWCT1016 WR-75 10 - 15 0.1 1.05:1 20 25 Square Cover EAR99

PEWCT1017 WR-75 10 - 15 0.1 1.05:1 30 25 Square Cover EAR99

PEWCT1018 WR-75 10 - 15 0.1 1.05:1 40 15 Square Cover EAR99

PEWCT1019 WR-75 10 - 15 0.1 1.05:1 50 10 Square Cover EAR99

PEWCT1020 WR-90 8.2 - 12.4 0.1 1.05:1 20 20 Square Cover UG-39/U EAR99

PEWCT1024 WR-90 8.2 - 12.4 0.1 1.05:1 20 25 CPR-90G EAR99

PEWCT1025 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 CPR-90G EAR99

PEWCT1021 WR-90 8.2 - 12.4 0.1 1.05:1 30 20 Square Cover UG-39/U EAR99

63 Available for Same-Day Shipping
