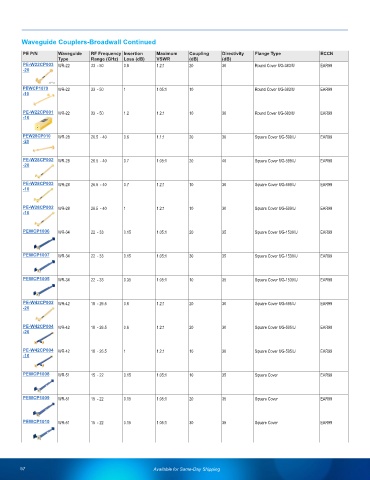

Waveguide Couplers-Broadwall Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PE-W22CP003 WR-22 33 - 50 0.8 1.2:1 20 30 Round Cover UG-383/U EAR99
-20

PEWCP1079 WR-22 33 - 50 1 1.05:1 10 Round Cover UG-383/U EAR99
-10

PE-W22CP001 WR-22 33 - 50 1.2 1.2:1 10 30 Round Cover UG-383/U EAR99
-10

PEW28CP010 WR-28 26.5 - 40 0.6 1.1:1 20 30 Square Cover UG-599/U EAR99
-20

PE-W28CP002 WR-28 26.5 - 40 0.7 1.05:1 20 40 Square Cover UG-599/U EAR99
-20

PE-W28CP003 WR-28 26.5 - 40 0.7 1.2:1 10 30 Square Cover UG-599/U EAR99
-10

PE-W28CP002 WR-28 26.5 - 40 1 1.2:1 10 30 Square Cover UG-599/U EAR99
-10

PEWCP1006 WR-34 22 - 33 0.15 1.05:1 20 35 Square Cover UG-1530/U EAR99

PEWCP1007 WR-34 22 - 33 0.15 1.05:1 30 35 Square Cover UG-1530/U EAR99

PEWCP1005 WR-34 22 - 33 0.35 1.05:1 10 35 Square Cover UG-1530/U EAR99

PE-W42CP002 WR-42 18 - 26.5 0.6 1.2:1 20 30 Square Cover UG-595/U EAR99
-20

PE-W42CP004 WR-42 18 - 26.5 0.6 1.2:1 20 30 Square Cover UG-595/U EAR99
-20

PE-W42CP004 WR-42 18 - 26.5 1 1.2:1 10 30 Square Cover UG-595/U EAR99
-10

PEWCP1008 WR-51 15 - 22 0.15 1.05:1 10 35 Square Cover EAR99

PEWCP1009 WR-51 15 - 22 0.15 1.05:1 20 35 Square Cover EAR99

PEWCP1010 WR-51 15 - 22 0.15 1.05:1 30 35 Square Cover EAR99
