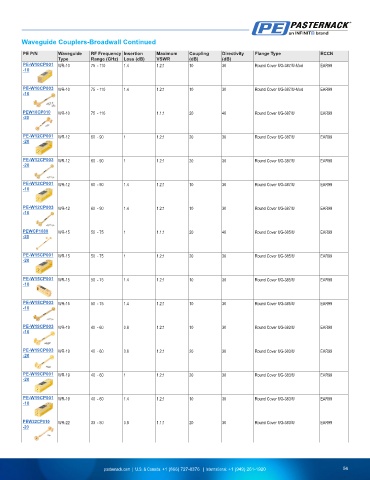

Page 57 - Waveguides Product Selection Guide

Waveguide Couplers-Broadwall Continued
PE P/N Waveguide RF Frequency Insertion Maximum Coupling Directivity Flange Type ECCN
Type Range (GHz) Loss (dB) VSWR (dB) (dB)
PE-W10CP001 WR-10 75 - 110 1.4 1.2:1 10 30 Round Cover UG-387/U-Mod EAR99
-10

PE-W10CP003 WR-10 75 - 110 1.4 1.2:1 10 30 Round Cover UG-387/U-Mod EAR99
-10

PEW10CP010 WR-10 75 - 110 1.1:1 20 40 Round Cover UG-387/U EAR99
-20

PE-W12CP001 WR-12 60 - 90 1 1.2:1 20 30 Round Cover UG-387/U EAR99
-20

PE-W12CP003 WR-12 60 - 90 1 1.2:1 20 30 Round Cover UG-387/U EAR99
-20

PE-W12CP001 WR-12 60 - 90 1.4 1.2:1 10 30 Round Cover UG-387/U EAR99
-10

PE-W12CP003 WR-12 60 - 90 1.4 1.2:1 10 30 Round Cover UG-387/U EAR99
-10

PEWCP1080 WR-15 50 - 75 1 1.1:1 20 40 Round Cover UG-385/U EAR99
-20

PE-W15CP001 WR-15 50 - 75 1 1.2:1 20 30 Round Cover UG-385/U EAR99
-20

PE-W15CP001 WR-15 50 - 75 1.4 1.2:1 10 30 Round Cover UG-385/U EAR99
-10

PE-W15CP003 WR-15 50 - 75 1.4 1.2:1 10 30 Round Cover UG-385/U EAR99
-10

PE-W19CP003 WR-19 40 - 60 0.8 1.2:1 10 30 Round Cover UG-383/U EAR99
-10

PE-W19CP003 WR-19 40 - 60 0.8 1.2:1 20 30 Round Cover UG-383/U EAR99
-20

PE-W19CP001 WR-19 40 - 60 1 1.2:1 20 30 Round Cover UG-383/U EAR99
-20

PE-W19CP001 WR-19 40 - 60 1.4 1.2:1 10 30 Round Cover UG-383/U EAR99
-10

PEW22CP010 WR-22 33 - 50 0.8 1.1:1 20 30 Round Cover UG-383/U EAR99
-20

56
