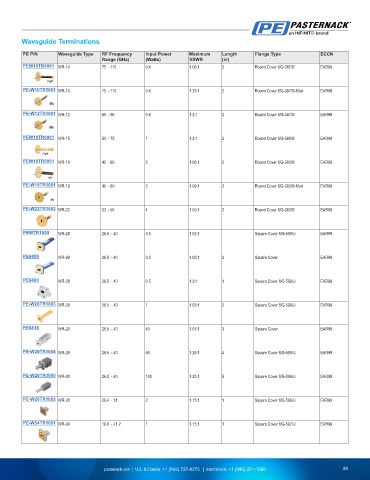

Waveguide Terminations
PE P/N Waveguide Type RF Frequency Input Power Maximum Length Flange Type ECCN
Range (GHz) (Watts) VSWR (in)
PEW10TR0001 WR-10 75 - 110 0.4 1.06:1 2 Round Cover UG-387/U EAR99
PE-W10TR1001 WR-10 75 - 110 0.4 1.25:1 2 Round Cover UG-387/U-Mod EAR99
PE-W12TR1001 WR-12 60 - 90 0.6 1.2:1 2 Round Cover UG-387/U EAR99
PEW15TR0001 WR-15 50 - 75 1 1.2:1 2 Round Cover UG-385/U EAR99
PEW19TR0001 WR-19 40 - 60 2 1.06:1 2 Round Cover UG-383/U EAR99
PE-W19TR1001 WR-19 40 - 60 2 1.09:1 2 Round Cover UG-383/U-Mod EAR99
PE-W22TR1002 WR-22 33 - 50 4 1.05:1 2 Round Cover UG-383/U EAR99
PEWTR1000 WR-28 26.5 - 40 0.5 1.02:1 Square Cover UG-599/U EAR99
PE6809 WR-28 26.5 - 40 0.5 1.05:1 2 Square Cover EAR99
PE6800 WR-28 26.5 - 40 0.5 1.3:1 1 Square Cover UG-599/U EAR99
PE-W28TR1003 WR-28 26.5 - 40 1 1.03:1 2 Square Cover UG-599/U EAR99
PE6818 WR-28 26.5 - 40 40 1.07:1 3 Square Cover EAR99
PE-W28TR1004 WR-28 26.5 - 40 50 1.25:1 4 Square Cover UG-599/U EAR99
PE-W28TR1005 WR-28 26.5 - 40 100 1.25:1 5 Square Cover UG-599/U EAR99
PE-W28TR1002 WR-28 29.4 - 31 2 1.15:1 1 Square Cover UG-599/U EAR99
PE-W34TR1001 WR-34 19.6 - 21.2 1 1.15:1 1 Square Cover UG-597/U EAR99
