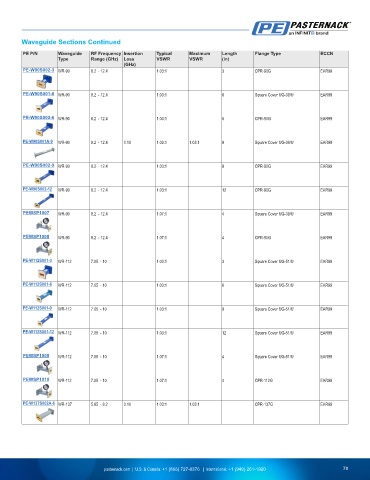

Waveguide Sections Continued
PE P/N Waveguide RF Frequency Insertion Typical Maximum Length Flange Type ECCN
Type Range (GHz) Loss VSWR VSWR (in)
(GHz)
PE-W90S002-3 WR-90 8.2 - 12.4 1.03:1 3 CPR-90G EAR99
PE-W90S001-6 WR-90 8.2 - 12.4 1.03:1 6 Square Cover UG-39/U EAR99
PE-W90S002-6 WR-90 8.2 - 12.4 1.03:1 6 CPR-90G EAR99
PE-W90S001A-9 WR-90 8.2 - 12.4 0.10 1.03:1 1.03:1 9 Square Cover UG-39/U EAR99
PE-W90S002-9 WR-90 8.2 - 12.4 1.03:1 9 CPR-90G EAR99
PE-W90S002-12 WR-90 8.2 - 12.4 1.03:1 12 CPR-90G EAR99
PEWSP1007 WR-90 8.2 - 12.4 1.07:1 4 Square Cover UG-39/U EAR99
PEWSP1008 WR-90 8.2 - 12.4 1.07:1 4 CPR-90G EAR99
PE-W112S001-3 WR-112 7.05 - 10 1.03:1 3 Square Cover UG-51/U EAR99
PE-W112S001-6 WR-112 7.05 - 10 1.03:1 6 Square Cover UG-51/U EAR99
PE-W112S001-9 WR-112 7.05 - 10 1.03:1 9 Square Cover UG-51/U EAR99
PE-W112S001-12 WR-112 7.05 - 10 1.03:1 12 Square Cover UG-51/U EAR99
PEWSP1009 WR-112 7.05 - 10 1.07:1 4 Square Cover UG-51/U EAR99
PEWSP1010 WR-112 7.05 - 10 1.07:1 4 CPR-112G EAR99
PE-W137S002A-6 WR-137 5.85 - 8.2 0.10 1.03:1 1.03:1 CPR-137G EAR99
