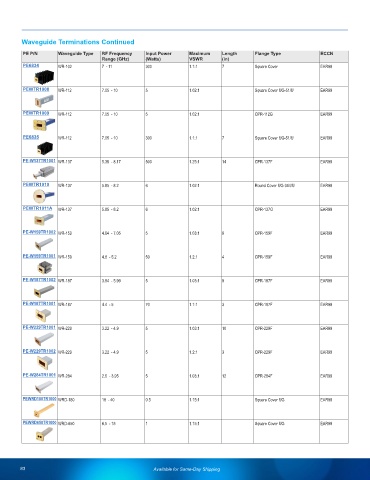

Page 84 - Waveguides Product Selection Guide
P. 84
Waveguide Terminations Continued
PE P/N Waveguide Type RF Frequency Input Power Maximum Length Flange Type ECCN
Range (GHz) (Watts) VSWR (in)
PE6834 WR-102 7 - 11 300 1.1:1 7 Square Cover EAR99
PEWTR1008 WR-112 7.05 - 10 5 1.02:1 Square Cover UG-51/U EAR99
PEWTR1009 WR-112 7.05 - 10 5 1.02:1 CPR-112G EAR99
PE6835 WR-112 7.05 - 10 300 1.1:1 7 Square Cover UG-51/U EAR99
PE-W137TR1001 WR-137 5.38 - 8.17 500 1.25:1 14 CPR-137F EAR99
PEWTR1010 WR-137 5.85 - 8.2 6 1.02:1 Round Cover UG-344/U EAR99
PEWTR1011A WR-137 5.85 - 8.2 6 1.02:1 CPR-137G EAR99
PE-W159TR1002 WR-159 4.64 - 7.05 5 1.03:1 8 CPR-159F EAR99
PE-W159TR1001 WR-159 4.8 - 5.2 50 1.2:1 4 CPR-159F EAR99
PE-W187TR1002 WR-187 3.94 - 5.99 5 1.03:1 9 CPR-187F EAR99
PE-W187TR1001 WR-187 4.4 - 5 70 1.1:1 3 CPR-187F EAR99
PE-W229TR1001 WR-229 3.22 - 4.9 5 1.03:1 10 CPR-229F EAR99
PE-W229TR1002 WR-229 3.22 - 4.9 5 1.2:1 3 CPR-229F EAR99
PE-W284TR1001 WR-284 2.6 - 3.95 5 1.03:1 12 CPR-284F EAR99
PEWRD180TR1000 WRD-180 18 - 40 0.5 1.15:1 Square Cover UG EAR99
PEWRD650TR1000 WRD-650 6.5 - 18 1 1.15:1 Square Cover UG EAR99
83 Available for Same-Day Shipping
