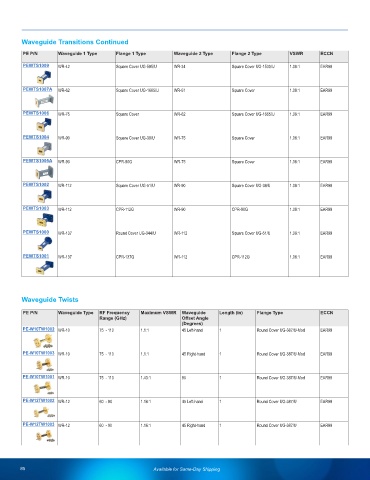

Waveguide Transitions Continued
PE P/N Waveguide 1 Type Flange 1 Type Waveguide 2 Type Flange 2 Type VSWR ECCN
PEWTS1009 WR-42 Square Cover UG-595/U WR-34 Square Cover UG-1530/U 1.08:1 EAR99
PEWTS1007A WR-62 Square Cover UG-1665/U WR-51 Square Cover 1.08:1 EAR99
PEWTS1006 WR-75 Square Cover WR-62 Square Cover UG-1665/U 1.08:1 EAR99
PEWTS1004 WR-90 Square Cover UG-39/U WR-75 Square Cover 1.08:1 EAR99
PEWTS1005A WR-90 CPR-90G WR-75 Square Cover 1.08:1 EAR99
PEWTS1002 WR-112 Square Cover UG-51/U WR-90 Square Cover UG-39/U 1.08:1 EAR99
PEWTS1003 WR-112 CPR-112G WR-90 CPR-90G 1.08:1 EAR99
PEWTS1000 WR-137 Round Cover UG-344/U WR-112 Square Cover UG-51/U 1.08:1 EAR99
PEWTS1001 WR-137 CPR-137G WR-112 CPR-112G 1.08:1 EAR99
Waveguide Twists
PE P/N Waveguide Type RF Frequency Maximum VSWR Waveguide Length (in) Flange Type ECCN
Range (GHz) Offset Angle
(Degrees)
PE-W10TW1002 WR-10 75 - 110 1.1:1 45 Left-hand 1 Round Cover UG-387/U-Mod EAR99
PE-W10TW1003 WR-10 75 - 110 1.1:1 45 Right-hand 1 Round Cover UG-387/U-Mod EAR99
PE-W10TW1001 WR-10 75 - 110 1.43:1 90 1 Round Cover UG-387/U-Mod EAR99
PE-W12TW1002 WR-12 60 - 90 1.16:1 45 Left-hand 1 Round Cover UG-387/U EAR99
PE-W12TW1003 WR-12 60 - 90 1.16:1 45 Right-hand 1 Round Cover UG-387/U EAR99
