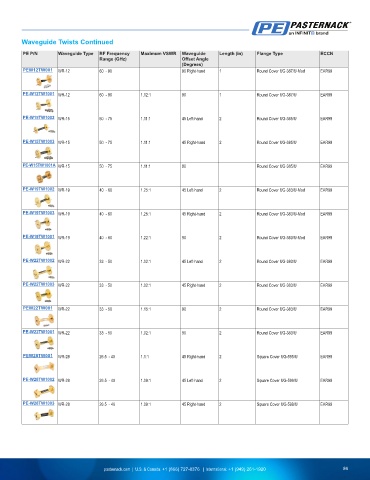

Waveguide Twists Continued
PE P/N Waveguide Type RF Frequency Maximum VSWR Waveguide Length (in) Flange Type ECCN
Range (GHz) Offset Angle
(Degrees)
PEW12TW001 WR-12 60 - 90 90 Right-hand 1 Round Cover UG-387/U-Mod EAR99
PE-W12TW1001 WR-12 60 - 90 1.12:1 90 1 Round Cover UG-387/U EAR99
PE-W15TW1002 WR-15 50 - 75 1.11:1 45 Left-hand 2 Round Cover UG-385/U EAR99
PE-W15TW1003 WR-15 50 - 75 1.11:1 45 Right-hand 2 Round Cover UG-385/U EAR99
PE-W15TW1001A WR-15 50 - 75 1.11:1 90 Round Cover UG-385/U EAR99
PE-W19TW1002 WR-19 40 - 60 1.25:1 45 Left-hand 2 Round Cover UG-383/U-Mod EAR99
PE-W19TW1003 WR-19 40 - 60 1.25:1 45 Right-hand 2 Round Cover UG-383/U-Mod EAR99
PE-W19TW1001 WR-19 40 - 60 1.22:1 90 2 Round Cover UG-383/U-Mod EAR99
PE-W22TW1002 WR-22 33 - 50 1.02:1 45 Left-hand 2 Round Cover UG-383/U EAR99
PE-W22TW1003 WR-22 33 - 50 1.02:1 45 Right-hand 2 Round Cover UG-383/U EAR99
PEW22TW001 WR-22 33 - 50 1.15:1 90 2 Round Cover UG-383/U EAR99
PE-W22TW1001 WR-22 33 - 50 1.02:1 90 2 Round Cover UG-383/U EAR99
PEW28TW001 WR-28 26.5 - 40 1.1:1 45 Right-hand 2 Square Cover UG-595/U EAR99
PE-W28TW1002 WR-28 26.5 - 40 1.09:1 45 Left-hand 2 Square Cover UG-599/U EAR99
PE-W28TW1003 WR-28 26.5 - 40 1.09:1 45 Right-hand 2 Square Cover UG-599/U EAR99
