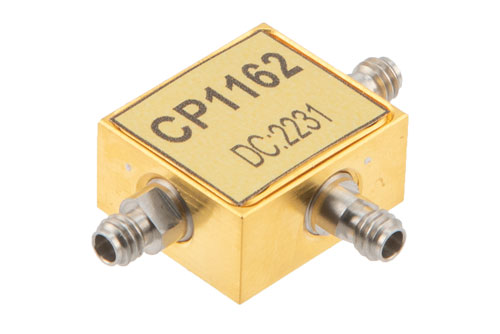

Directional 1.0 mm Coupler From 20 GHz to 110 GHz Rated to 1 Watt
Directional couplers are indispensable components for isolating, separating and combining signals. For example, they provide a simple way of sampling microwave signals. They also can make accurate attenuator measurements since reflections are eliminated. The PE2CP1162 is a directional coupler that operates from 20 to 110 GHz and can handle up to 1 Watt (CW) with 7 dB directivity minimum and 1.9:1 VSWR maximum. The package interface uses 1.0 mm (W1) female connectors.
The PE2CP1162 is part of Pasternack's family of directional/dual-directional couplers that offer coupling ratios up to 50 dB with excellent performance featuring high directivity, low insertion loss and VSWR. They are available in both narrow and broad bandwidths and can be used in a wide variety of applications including signal sampling, VSWR measurements, power combining and distribution.
