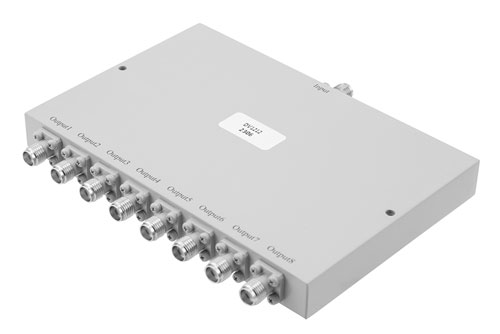

The PE20DV1212 8-way SMA power divider (also known as a SMA coaxial power splitter) is rated for a minimum frequency of 500 MHz and a maximum frequency of 1 GHz. This Pasternack 8 port power divider / coaxial splitter has a 50 Ohm impedance and a maximum input power of 30 Watts. Our SMA coaxial RF splitter / divider has a female SMA input and 8 female SMA output ports. This RF power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase.
This SMA connector power divider has a 0.45 dB maximum amplitude balance. Our 50 Ohm radio frequency power divider is built to operate across a temperature range of -40 deg C to 85 deg C. This 1 GHz RF power divider has 3 degrees and 5 degrees typical and maximum phase balance, respectively.
This 8-way SMA RF power divider from Pasternack has a maximum insertion loss of 0.7 dB. The maximum input VSWR of this SMA splitter / divider is 1.35:1 and the minimum isolation is 20 dB.
Our 8 port SMA power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This 8-way SMA female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF power divider for your requirements.
