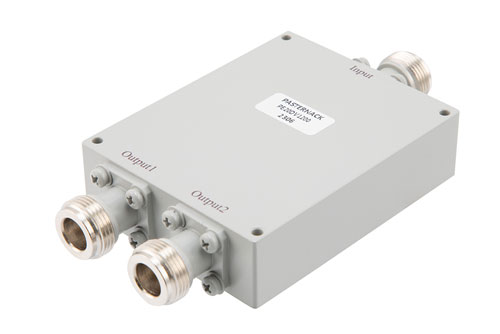

The PE20DV1200 2-way type N power divider (also known as a type N coaxial power splitter) is rated for a minimum frequency of 216 MHz and a maximum frequency of 450 MHz. This Pasternack 2 port power divider / coaxial splitter has a 50 Ohm impedance and a maximum input power of 50 Watts. Our type N coaxial RF splitter / divider has a female type N input and 2 female type N output ports. This RF power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase.
Pasternack’s PE20DV1200 power splitter comes with an aluminum housing and can handle maximum reverse power up to 5 Watts. This type N connector power divider has a 0.20 dB maximum amplitude balance. Our 50 Ohm radio frequency power divider is built to operate across a temperature range of -40 deg C to 85 deg C. This 450 MHz RF power divider has 1 degrees and 2 degrees typical and maximum phase balance, respectively.
This 2-way type N RF power divider from Pasternack has a maximum insertion loss of 0.3 dB. The maximum input VSWR of this type N splitter / divider is 1.3:1 and the minimum isolation is 22 dB.
Our 2 port type N power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This 2-way type N female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF power divider for your requirements.
