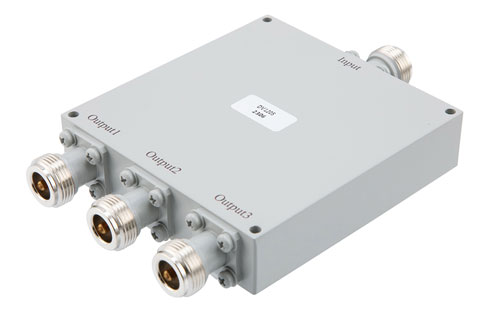

The PE20DV1205 3-way type N power divider (also known as a type N coaxial power splitter) is rated for a minimum frequency of 300 MHz and a maximum frequency of 500 MHz. This Pasternack 3 port power divider / coaxial splitter has a 50 Ohm impedance and a maximum input power of 50 Watts. Our type N coaxial RF splitter / divider has a female type N input and 3 female type N output ports. This RF power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase.
Pasternack’s PE20DV1205 power splitter comes with an aluminum housing and can handle maximum reverse power up to 2 Watts. This type N connector power divider has a 0.30 dB maximum amplitude balance. Our 50 Ohm radio frequency power divider is built to operate across a temperature range of -40 deg C to 85 deg C. This 500 MHz RF power divider has 3 degrees and 5 degrees typical and maximum phase balance, respectively.
This 3-way type N RF power divider from Pasternack has a maximum insertion loss of 0.5 dB. The maximum input VSWR of this type N splitter / divider is 1.35:1 and the minimum isolation is 20 dB.
Our 3 port type N power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This 3-way type N female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF power divider for your requirements.
