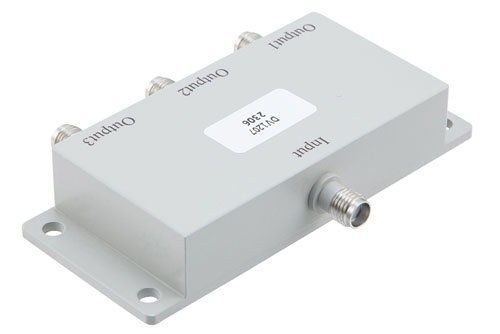

The PE20DV1207 3-way SMA power divider (also known as a SMA coaxial power splitter) is rated for a minimum frequency of 1 MHz and a maximum frequency of 500 MHz. This Pasternack 3 port power divider / coaxial splitter has a 50 Ohm impedance and a maximum input power of 10 Watts. Our SMA coaxial RF splitter / divider has a female SMA input and 3 female SMA output ports. This RF power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase.
Pasternack’s PE20DV1207 power splitter comes with an aluminum housing and can handle maximum reverse power up to 1 Watts. This SMA connector power divider has a 0.40 dB maximum amplitude balance. Our 50 Ohm radio frequency power divider is built to operate across a temperature range of -40 deg C to 85 deg C.
This 3-way SMA RF power divider from Pasternack has a maximum insertion loss of 1.2 dB. The maximum input VSWR of this SMA splitter / divider is 1.4:1 and the minimum isolation is 20 dB.
Our 3 port SMA power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This 3-way SMA female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF power divider for your requirements.
