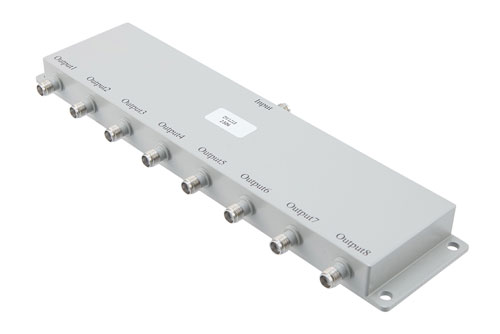

The PE20DV1213 8-way SMA power divider (also known as a SMA coaxial power splitter) is rated for a minimum frequency of 5 MHz and a maximum frequency of 500 MHz. This Pasternack 8 port power divider / coaxial splitter has a 50 Ohm impedance and a maximum input power of 10 Watts. Our SMA coaxial RF splitter / divider has a female SMA input and 8 female SMA output ports. This RF power divider allows the splitting of a single signal into multiple signals with equal magnitude and phase.
Pasternack’s PE20DV1213 power splitter comes with an aluminum housing and can handle maximum reverse power up to 0.5 Watts. This SMA connector power divider has a 0.30 dB maximum amplitude balance. Our 50 Ohm radio frequency power divider is built to operate across a temperature range of -40 deg C to 85 deg C. This 500 MHz RF power divider has 2 degrees and 3 degrees typical and maximum phase balance, respectively.
This 8-way SMA RF power divider from Pasternack has a maximum insertion loss of 2 dB. The maximum input VSWR of this SMA splitter / divider is 1.35:1 and the minimum isolation is 20 dB.
Our 8 port SMA power divider is one of over 40,000 RF, microwave and millimeter wave components supplied by Pasternack. This 8-way SMA female coaxial RF power divider splitter can be bought and shipped worldwide the same-day as with Pasternack's other in-stock RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF power divider for your requirements.
