N 75 Ohm RF Load Terminations

Check out our new RF calculators & conversion tools...

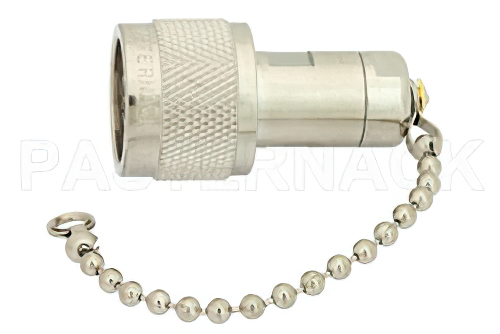

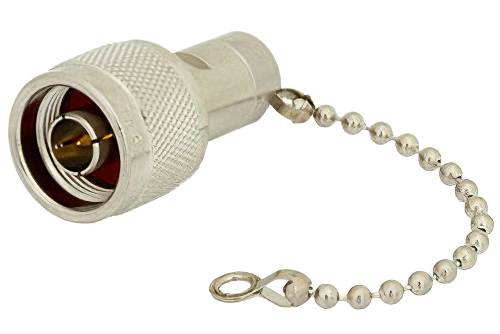

0.5 Watt RF Load with Chain Up to 1,000 MHz with 75 Ohm N Male Nickel Plated Brass

Product ID: PE6062-75
0.5 Watt RF Load with Chain Up to 1,000 MHz with 75 Ohm N Male Nickel Plated Brass


Image Views:  0.5 Watt RF Load with Chain Up to 1,000 MHz with 75 Ohm N Male Nickel Plated Brass high resolution
Zoomalternate image
View 2


Click for:PE6062-75 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Terminations.

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesN
Connector GenderMale
Minimum FrequencyDC
Maximum Frequency1 GHz
Impedance75 Ohm
Maximum Power0.5 Watt


0.5 Watt RF Load with Chain Up to 1,000 MHz with 75 Ohm N Male Nickel Plated Brass

PE6062-75 0.5 Watts RF load (also known as termination or dummy load) has a type N connector that is male. This Pasternack 0.5 watt N type male load / termination is rated for a maximum frequency of 1 GHz. Our type N male termination load is a rf load termination with a 75 Ohm impedance.

This type N load / coax terminator is manufactured with chain. PE6062-75 0.5 watt type N male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our type N male 0.5 watt termination load will ship worldwide the same day as purchased.
