Standard SMB 0.5 Watt Dummy Loads

Check out our new RF calculators & conversion tools...

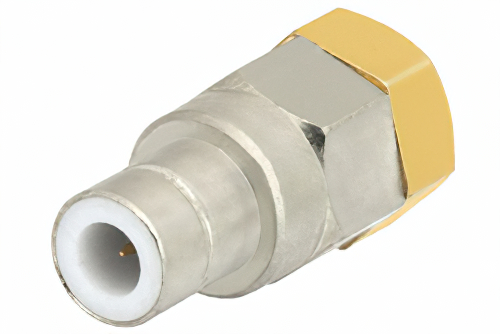

75 Ohm 0.5 Watts Nickel Plated Brass SMB Jack RF Load Up To 1,000 MHz

Product ID: PE6054
75 Ohm 0.5 Watts Nickel Plated Brass SMB Jack RF Load Up To 1,000 MHz


Image Views:  75 Ohm 0.5 Watts Nickel Plated Brass SMB Jack RF Load Up To 1,000 MHz high resolution
Zoomalternate image
View 2


Click for:PE6054 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Terminations.

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesSMB
Connector GenderJack
Minimum FrequencyDC
Maximum Frequency1,000 MHz
Impedance75 Ohm
Maximum Power0.5 Watt


75 Ohm 0.5 Watts Nickel Plated Brass SMB Jack RF Load Up To 1,000 MHz

PE6054 0.5 Watts RF load (also known as termination or dummy load) has a SMB connector that is jack. This Pasternack 0.5 watt SMB jack load / termination is rated for a maximum frequency of 1,000 MHz. Our SMB jack termination load is a rf load termination with a 75 Ohm impedance.

This SMB load / coax terminator is manufactured with no chain. PE6054 0.5 watt SMB jack load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our SMB jack 0.5 watt termination load will ship worldwide the same day as purchased.
