Standard SMB 0.5 Watt Dummy Loads

Check out our new RF calculators & conversion tools...

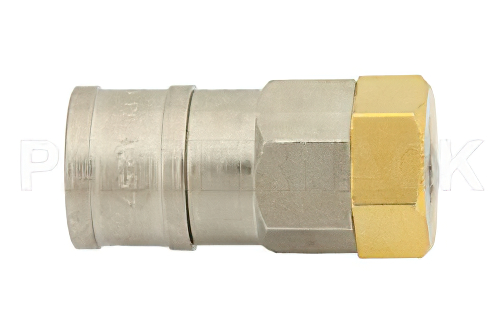

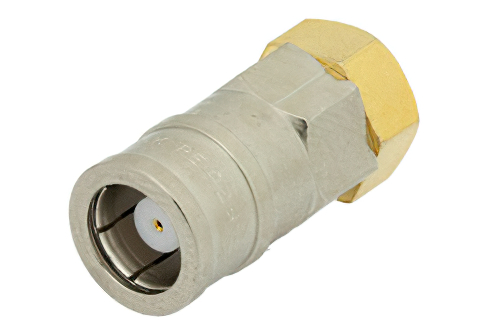

75 Ohm 0.5 Watts Nickel Plated Brass SMB Plug RF Load Up To 1,000 MHz

Product ID: PE6053
75 Ohm 0.5 Watts Nickel Plated Brass SMB Plug RF Load Up To 1,000 MHz


Image Views:  75 Ohm 0.5 Watts Nickel Plated Brass SMB Plug RF Load Up To 1,000 MHz high resolution
Zoomalternate image
View 2


Click for:PE6053 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Terminations.

Key Specifications (Click on Data Sheet Above for Additional Details).
Termination TypeRF Load
Connector SeriesSMB
Connector GenderPlug
Minimum FrequencyDC
Maximum Frequency1,000 MHz
Impedance75 Ohm
Maximum Power0.5 Watt


75 Ohm 0.5 Watts Nickel Plated Brass SMB Plug RF Load Up To 1,000 MHz

PE6053 0.5 Watts RF load (also known as termination or dummy load) has a SMB connector that is plug. This Pasternack 0.5 watt SMB plug load / termination is rated for a maximum frequency of 1,000 MHz. Our SMB plug termination load is a rf load termination with a 75 Ohm impedance.

This SMB load / coax terminator is manufactured with no chain. Pasternack 75 Ohm SMB coaxial termination / load is RoHS compliant. PE6053 0.5 watt SMB plug load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our SMB plug 0.5 watt termination load will ship worldwide the same day as purchased.
