1 Watt RF Load Up to 50 GHz With 2.4mm Male Input Passivated Stainless Steel
Product ID:
PE6178
Pricing
| Quantity | Price |
| 1-9 | $675.00 |
| 10-24 | $641.25 |
| 25-49 | $607.50 |
| 50+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 15
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Termination Type | RF Load |
| Connector Series | 2.4mm |
| Connector Gender | Male |
| Minimum Frequency | DC |
| Maximum Frequency | 50 GHz |
| Impedance | 50 Ohm |
| Maximum VSWR | 1.45:1 |
| Maximum Power | 1 Watt |
Description

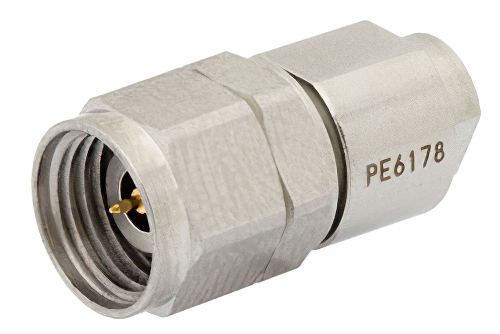

1 Watt RF Load Up to 50 GHz With 2.4mm Male Input Passivated Stainless Steel
PE6178 1 Watts RF load (also known as termination or dummy load) has a 2.4mm connector that is male. This Pasternack 1 watt 2.4mm male load / termination is rated for a maximum frequency of 50 GHz. Our 2.4mm male termination load is a rf load termination with a 50 Ohm impedance.
This 2.4mm load / coax terminator is manufactured with no chain and passivated stainless steel body. Pasternack 50 Ohm 2.4mm coaxial termination / load is RoHS compliant and has an average maximum VSWR of 1.45:1. PE6178 1 watt 2.4mm male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our 2.4mm male 1 watt termination load will ship worldwide the same day as purchased.
