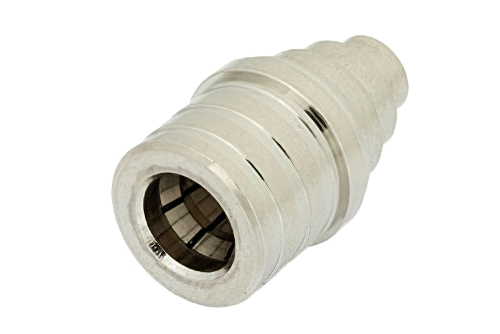

1 Watt RF Load Up to 12.4 GHz With QMA Male Input Nickel Plated Brass
Product ID:
PE6164
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Termination Type | RF Load |
| Connector Series | QMA |
| Connector Gender | Male |
| Minimum Frequency | DC |
| Maximum Frequency | 12.4 GHz |
| Impedance | 50 Ohm |
| Maximum VSWR | 1.22:1 |
| Maximum Power | 1 Watt |
Description
1 Watt RF Load Up to 12.4 GHz With QMA Male Input Nickel Plated Brass
PE6164 1 Watts RF load (also known as termination or dummy load) has a QMA connector that is male. This Pasternack 1 watt QMA male load / termination is rated for a maximum frequency of 12.4 GHz. Our QMA male termination load is a rf load termination with a 50 Ohm impedance.
This QMA load / coax terminator is manufactured with no chain and brass body. Pasternack 50 Ohm QMA coaxial termination / load has an average maximum VSWR of 1.22:1. PE6164 1 watt QMA male load termination is one of over 40,000 RF, microwave and millimeter wave components in-stock at Pasternack. Our QMA male 1 watt termination load will ship worldwide the same day as purchased.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
