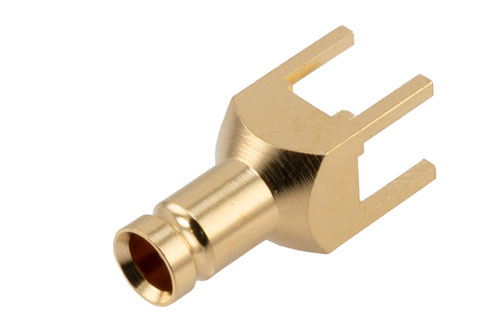

12G SDI 75 Ohm 1.0/2.3 Female Connector Solder Attachment Thru Hole PCB
Product ID:
PE40017
Pricing
| Quantity | Price |
| 1-24 | $5.29 |
| 25-49 | $5.03 |
| 50-99 | $4.76 |
| 100-249 | $4.55 |
| 250+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 50
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Polarity | Standard |
| Connector Series | 1.0/2.3 |
| Connector Gender | Female |
| Impedance | 75 Ohm |
| Body Style | Straight |
| Attachment Method | Solder |
| Mount Method | None |
| Minimum Frequency | DC |
| Maximum Frequency | 12 GHz |
| Interface Type 1 | Thru Hole |
Description
12G SDI 75 Ohm 1.0/2.3 Female Connector Solder Attachment Thru Hole PCB
PE40017 1.0/2.3 female pcb connector has an interface type of 1.0/2.3 female thru hole and a 75 Ohm impedance. Pasternack 1.0/2.3 female connector uses shield/contact solder as an attachment method. Our female 1.0/2.3 pcb connector provides a minimum frequency of DC and a maximum frequency of 12 GHz.
The Pasternack 1.0/2.3 female pcb connector has a PTFE dielectric type. Our PE40017 1.0/2.3 connector uses brass contact and a gold plating material. This 1.0/2.3 female pcb RF connector is REACH compliant.
This Pasternack female 1.0/2.3 connector will ship the same day as purchased. Our 1.0/2.3 female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.0/2.3 connector cable assemblies that will ship the same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
