SMA to 1.0/2.3 Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

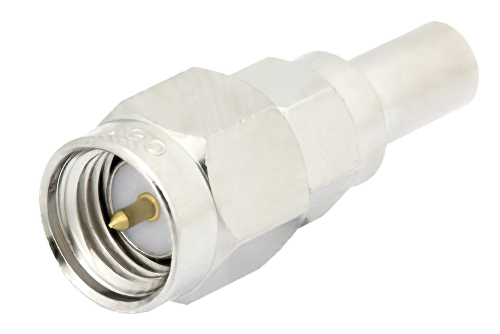

SMA Male to 1.0/2.3 Jack Adapter

Product ID: PE9690
SMA Male to 1.0/2.3 Jack Adapter


Image Views:  SMA Male to 1.0/2.3 Jack Adapter high resolution
Zoomalternate image
View 2


Click for:PE9690 Datasheet
Click for:PE9690 RoHS Cert
Click for:PE9690 REACH Cert
Available Quantity: 39
Pricing Table
QUANTITYPRICE
1-24$92.51
25-49$87.88
50-99$83.26
100-249$79.56
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 21.0/2.3
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


SMA Male to 1.0/2.3 Jack Adapter

SMA adapter PE9690 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our SMA to 1.0/2.3 adapter is a between series coaxial adapter design. This 50 Ohm SMA adapter is precision manufactured to RF components industry specifications.

SMA male to 1.0/2.3 jack adapter is one of the many RF components that ship same day as they are ordered. PE9690 male SMA to jack 1.0/2.3 adapter has a straight body. This Pasternack straight SMA coax adapter is a in-line RF adapter.

Our male SMA to jack 1.0/2.3 adapter PE9690 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This SMA to 1.0/2.3 radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
