1.0/2.3 Jack Right Angle Connectors

Check out our new RF calculators & conversion tools...

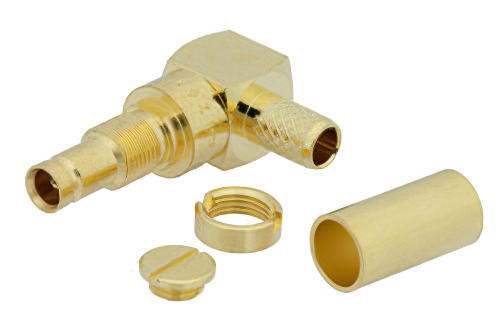

1.0/2.3 Jack Right Angle Bulkhead Connector Crimp/Solder Attachment For RG58, .236 inch DD Hole

Product ID: PE44260
1.0/2.3 Jack Right Angle Bulkhead Connector Crimp/Solder Attachment For RG58, .236 inch DD Hole


Image Views:  1.0/2.3 Jack Right Angle Bulkhead Connector Crimp/Solder Attachment For RG58, .236 inch DD Hole high resolution
Zoomalternate image
View 2


Click for:PE44260 Datasheet
Click for:PE44260 RoHS Cert
Click for:PE44260 REACH Cert
Available Quantity: 2,999
Pricing Table
QUANTITYPRICE
1-24$15.74
25-49$14.64
50-99$13.54
100-249$12.59
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector Series1.0/2.3
Connector GenderJack
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodBulkhead


1.0/2.3 Jack Right Angle Bulkhead Connector Crimp/Solder Attachment For RG58, .236 inch DD Hole

PE44260 1.0/2.3 jack right angle bulkhead coaxial connector has an interface type of RG58 and a 50 Ohm impedance. Pasternack 1.0/2.3 jack bulkhead connector uses shield/contact crimp/solder as an attachment method.

The Pasternack right angle 1.0/2.3 jack bulkhead coaxial connector has a teflon dielectric type. The Pasternack 1.0/2.3 coaxial connector has a brass body with gold plating. Our PE44260 1.0/2.3right angle connector uses beryllium copper contact. This 1.0/2.3 jack right angle bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle jack 1.0/2.3 bulkhead connector will ship the same day as purchased. Our bulkhead 1.0/2.3 right angle jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.0/2.3 connector cable assemblies that will ship the same day as well.
