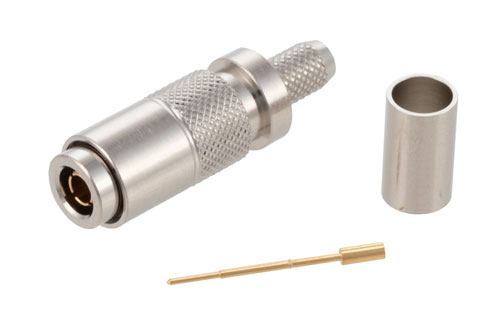

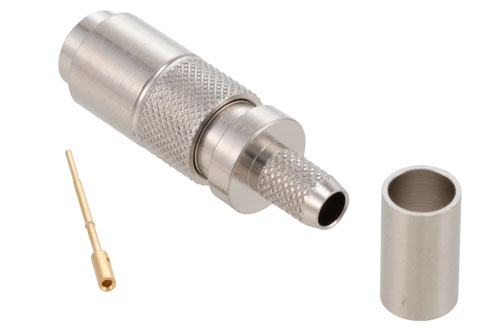

12G SDI 75 Ohm 1.0/2.3 Male Connector Crimp/Solder Attachment for Belden 4855R, Belden 1855A

Name: 12G SDI 75 Ohm 1.0/2.3 Male Connector Crimp/Solder Attachment for Belden 4855R, Belden 1855A
Brand: Pasternack
SKU: PE40005
Availability: InStock

Product ID: PE40005

Pricing

Quantity	Price
1-24	$26.79
25-49	$25.45
50-99	$24.11
100-249	$23.04
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 3

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	1.0/2.3
Connector Gender	Male
Impedance	75 Ohm
Body Style	Straight
Attachment Method	Crimp/Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	12 GHz
Interface Type 1	Belden 4855R
Interface Type 2	Belden 1855A

Description

12G SDI 75 Ohm 1.0/2.3 Male Connector Crimp/Solder Attachment for Belden 4855R, Belden 1855A

PE40005 1.0/2.3 male coaxial connector has an interface type of 1.0/2.3 male Belden 4855R, Belden 1855A and a 75 Ohm impedance. Pasternack 1.0/2.3 male connector uses shield/contact crimp/solder as an attachment method. Our male 1.0/2.3 coaxial connector provides a minimum frequency of DC and a maximum frequency of 12 GHz.

The Pasternack 1.0/2.3 male coaxial connector has a PTFE dielectric type. The Pasternack 1.0/2.3 coaxial connector has a brass body with nickel plating. Our PE40005 1.0/2.3 connector uses brass contact and a gold plating material. This 1.0/2.3 male coaxial RF connector is REACH compliant.

This Pasternack male 1.0/2.3 connector will ship the same day as purchased. Our 1.0/2.3 male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.0/2.3 connector cable assemblies that will ship the same day as well.
